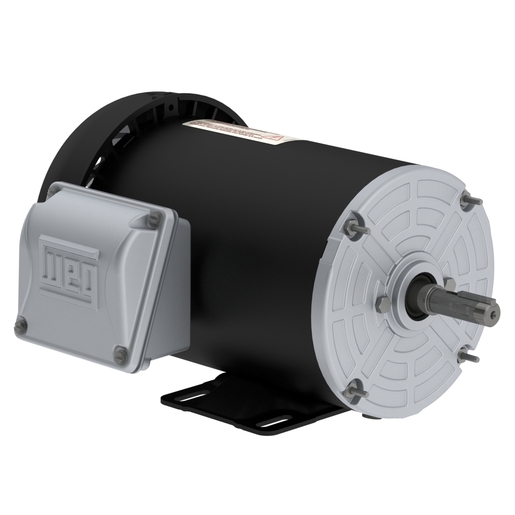

W01 Three-phase Standard Efficiency TEFC
The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame and aluminum flange, these versatile motors provide torque and durability for the severest applications.
TF.25404W01
- RATED VOLTAGE:208-230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:0.25 HP
- Number of Poles:4
- TERMINAL BOX:Left position
FC.25504SW01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:0.25 HP
- Number of Poles:4
- TERMINAL BOX:Left position
FC.25404W01
- RATED VOLTAGE:208-230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:0.25 HP
- Number of Poles:4
- TERMINAL BOX:Left position
FC.25504W01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:0.25 HP
- Number of Poles:4
- TERMINAL BOX:Left position
TF.33402W01
- RATED VOLTAGE:208-230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:0.33 HP
- Number of Poles:2
- TERMINAL BOX:Left position
TF.33404W01
- RATED VOLTAGE:208-230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:0.33 HP
- Number of Poles:4
- TERMINAL BOX:Left position
TF.33504W01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:0.33 HP
- Number of Poles:4
- TERMINAL BOX:Left position
FC.33404SW01
- RATED VOLTAGE:208-230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:0.33 HP
- Number of Poles:4
- TERMINAL BOX:Left position
FC.33402W01
- RATED VOLTAGE:208-230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:0.33 HP
- Number of Poles:2
- TERMINAL BOX:Left position
FC.33404W01
- RATED VOLTAGE:208-230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:0.33 HP
- Number of Poles:4
- TERMINAL BOX:Left position
FC.33502W01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:0.33 HP
- Number of Poles:2
- TERMINAL BOX:Left position
FC.33504W01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:0.33 HP
- Number of Poles:4
- TERMINAL BOX:Left position
FC.33504SW01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:0.33 HP
- Number of Poles:4
- TERMINAL BOX:Left position
TF.50402W01
- RATED VOLTAGE:208-230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:0.5 HP
- Number of Poles:2
- TERMINAL BOX:Left position
TF.50404W01
- RATED VOLTAGE:208-230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:0.5 HP
- Number of Poles:4
- TERMINAL BOX:Left position
TF.50502W01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:0.5 HP
- Number of Poles:2
- TERMINAL BOX:Left position
TF.50504W01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:0.5 HP
- Number of Poles:4
- TERMINAL BOX:Left position
TF.50506W01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:0.5 HP
- Number of Poles:6
- TERMINAL BOX:Left position
FC.50402W01
- RATED VOLTAGE:208-230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:0.5 HP
- Number of Poles:2
- TERMINAL BOX:Left position
FC.50404SW01
- RATED VOLTAGE:208-230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:0.5 HP
- Number of Poles:4
- TERMINAL BOX:Left position
FC.50404W01
- RATED VOLTAGE:208-230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:0.5 HP
- Number of Poles:4
- TERMINAL BOX:Left position
FC.50406SW01
- RATED VOLTAGE:208-230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:0.5 HP
- Number of Poles:6
- TERMINAL BOX:Left position
FC.50406W01
- RATED VOLTAGE:208-230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:0.5 HP
- Number of Poles:6
- TERMINAL BOX:Left position
FC.50502W01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:0.5 HP
- Number of Poles:2
- TERMINAL BOX:Left position
FC.50504SW01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:0.5 HP
- Number of Poles:4
- TERMINAL BOX:Left position
FC.50504W01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:0.5 HP
- Number of Poles:4
- TERMINAL BOX:Left position
FC.50506SW01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:0.5 HP
- Number of Poles:6
- TERMINAL BOX:Top
FC.50506W01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:0.5 HP
- Number of Poles:6
- TERMINAL BOX:Left position
FC.75502W01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:0.75 HP
- Number of Poles:2
- TERMINAL BOX:Left position
FC.75504SW01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:0.75 HP
- Number of Poles:4
- TERMINAL BOX:Left position
FC.75504W01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:0.75 HP
- Number of Poles:4
- TERMINAL BOX:Left position
FC.75506W01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:0.75 HP
- Number of Poles:6
- TERMINAL BOX:Left position
FC.75506SW01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:0.75 HP
- Number of Poles:6
- TERMINAL BOX:Left position
TF.75402W01
- RATED VOLTAGE:208-230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:0.75 HP
- Number of Poles:2
- TERMINAL BOX:Left position
TF.75404W01
- RATED VOLTAGE:208-230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:0.75 HP
- Number of Poles:4
- TERMINAL BOX:Left position
TF.75406W01
- RATED VOLTAGE:208-230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:0.75 HP
- Number of Poles:6
- TERMINAL BOX:Left position
TF.75502W01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:0.75 HP
- Number of Poles:2
- TERMINAL BOX:Left position
TF.75504W01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:0.75 HP
- Number of Poles:4
- TERMINAL BOX:Left position
TF.75506W01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:0.75 HP
- Number of Poles:6
- TERMINAL BOX:Left position
FC.75402W01
- RATED VOLTAGE:208-230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:0.75 HP
- Number of Poles:2
- TERMINAL BOX:Left position
FC.75404SW01
- RATED VOLTAGE:208-230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:0.75 HP
- Number of Poles:4
- TERMINAL BOX:Left position
FC.75404W01
- RATED VOLTAGE:208-230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:0.75 HP
- Number of Poles:4
- TERMINAL BOX:Left position
FC.75406W01
- RATED VOLTAGE:208-230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:0.75 HP
- Number of Poles:6
- TERMINAL BOX:Left position
FC000402W01
- RATED VOLTAGE:230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:1 HP
- Number of Poles:2
- TERMINAL BOX:Left position
FC000404SW01
- RATED VOLTAGE:230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:1 HP
- Number of Poles:4
- TERMINAL BOX:Left position
FC000404W01
- RATED VOLTAGE:230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:1 HP
- Number of Poles:4
- TERMINAL BOX:Left position
FC000502W01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:1 HP
- Number of Poles:2
- TERMINAL BOX:Left position
FC000504W01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:1 HP
- Number of Poles:4
- TERMINAL BOX:Left position
FC000506W01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:1 HP
- Number of Poles:6
- TERMINAL BOX:Left position
TF000402W01
- RATED VOLTAGE:230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:1 HP
- Number of Poles:2
- TERMINAL BOX:Left position
TF000404W01
- RATED VOLTAGE:230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:1 HP
- Number of Poles:4
- TERMINAL BOX:Left position
TF000406W01
- RATED VOLTAGE:230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:1 HP
- Number of Poles:6
- TERMINAL BOX:Left position
TF000502W01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:1 HP
- Number of Poles:2
- TERMINAL BOX:Left position
TF000504W01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:1 HP
- Number of Poles:4
- TERMINAL BOX:Left position
FC001402W01
- RATED VOLTAGE:230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:1.5 HP
- Number of Poles:2
- TERMINAL BOX:Left position
FC001404W01
- RATED VOLTAGE:230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:1.5 HP
- Number of Poles:4
- TERMINAL BOX:Left position
FC001502W01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:1.5 HP
- Number of Poles:2
- TERMINAL BOX:Left position
FC001504W01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:1.5 HP
- Number of Poles:4
- TERMINAL BOX:Left position
TF001402W01
- RATED VOLTAGE:230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:1.5 HP
- Number of Poles:2
- TERMINAL BOX:Left position
TF001404W01
- RATED VOLTAGE:230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:1.5 HP
- Number of Poles:4
- TERMINAL BOX:Left position
TF001502W01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:1.5 HP
- Number of Poles:2
- TERMINAL BOX:Left position
TF001504W01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:1.5 HP
- Number of Poles:4
- TERMINAL BOX:Left position
FC002402W01
- RATED VOLTAGE:230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:2 HP
- Number of Poles:2
- TERMINAL BOX:Left position
FC002404SW01
- RATED VOLTAGE:230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:2 HP
- Number of Poles:4
- TERMINAL BOX:Left position
FC002404W01
- RATED VOLTAGE:230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:2 HP
- Number of Poles:4
- TERMINAL BOX:Left position
FC002502W01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:2 HP
- Number of Poles:2
- TERMINAL BOX:Left position
FC002504SW01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:2 HP
- Number of Poles:4
- TERMINAL BOX:Left position
FC002504W01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:2 HP
- Number of Poles:4
- TERMINAL BOX:Left position
TF002402W01
- RATED VOLTAGE:230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:2 HP
- Number of Poles:2
- TERMINAL BOX:Left position
TF002502W01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:2 HP
- Number of Poles:2
- TERMINAL BOX:Left position
TF002504W01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:2 HP
- Number of Poles:4
- TERMINAL BOX:Left position
FC003402W01
- RATED VOLTAGE:230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:3 HP
- Number of Poles:2
- TERMINAL BOX:Left position
FC003502W01
- RATED VOLTAGE:575 V
- Enclosure:IC411 - TEFC
- Output Rating:3 HP
- Number of Poles:2
- TERMINAL BOX:Left position
TF003402W01
- RATED VOLTAGE:230/460 V
- Enclosure:IC411 - TEFC
- Output Rating:3 HP
- Number of Poles:2
- TERMINAL BOX:Left position
