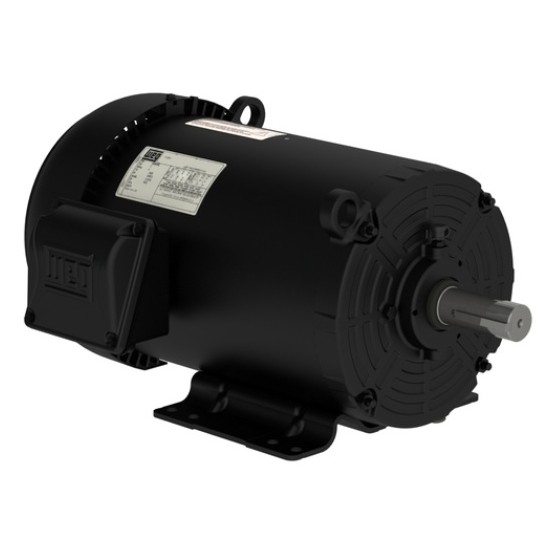

Part Number: HT010204NPW01
List Price: Please contact us for pricing
Inventory: In stock
*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)
General Information
Technical Details
Download Center
Voltage 208 V Enclosure IC411 - TEFC
Frame 213/5T Voltage 208 V Number of Poles 4 Altitude 1000 m.a.s.l. Starting Method Direct On Line Temperature Rise 80 K Insulation Class F Moment of Inertia (J) 1.07 sq.ft.lb Breakdown Torque 300 % No Load Current 11.1 A L. R. Amperes 189 A Slip 2.22 % Mounting F-1 Frequency 60 Hz Frame Material Rolled Steel Main Terminal Box Hole 1.377" Drain Rubber, automatic Painting Munsell N 1 - Matte 207N (ISO 12944 - C2) Fan Cover Material Steel Fan Material Plastic Balancing Method 1/2 Key Overload Protector (Phenolic) Without overload protector Grease Type Mobil Polyrex EM Rotation Both (CW and CCW) Bearing Type 6208 ZZ NDE Bearing Seal Without Bearing Seal
Flange Without Output 10 HP (7.5 kW) Terminal Box Left position Ambient Temperature -20°C to +40°C Duty Cycle Cont.(S1) Service Factor 1.15 Design B Locked Rotor Time 27s (cold) 15s (hot) Rated Torque 29.8 ft.lb LRC 7.0x(Code H) Rated Current 27.0 A Rated Speed 1760 rpm Degree of Protection IP55 Standard NEMA MG-1 Impregnation Method Dip and Bake Polyester Terminal Block Without Shaft Material SAE 1040/45 Carbon Steel Grounding Lugs Single Tropicalized Painting Without Bearing Cap No-Without Bearing Cap Drip Cover Without NDE Bearing 6206 ZZ Locked Rotor Torque 250 % Noise Level 60.0 dB(A) Sealing V'Ring
