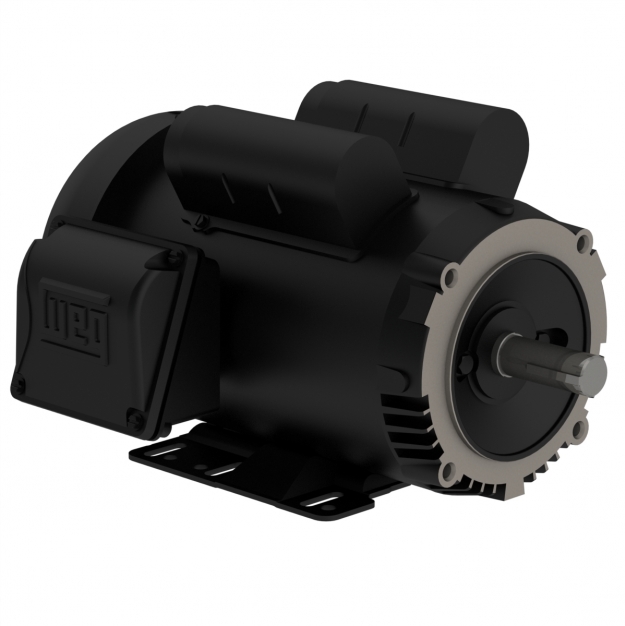

Rolled Steel 1 HP 6P 56HC 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Foot-mounted

Name: 1 HP 1200 1X2V TEFC 56HC 1PH W01 DOE
Brand: WEG
SKU: FC000106W01DOE
Price: 1322.00 CAD
Availability: InStock

Part Number: FC000106W01DOE

List Price: $1,322.00

Quantity:

Request Different Configuration

Inventory: In stock

Voltage	115/208-230 V
RPM	1200 rpm

HP	1 HP
Enclosure	IC411 - TEFC

Frame	56HC
Voltage	115/208-230 V
Number of Poles	6
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.1946 sq.ft.lb
Breakdown Torque	200 %
No Load Current	5.60/2.41-2.80 A
L. R. Amperes	64.0/35.4-31.9 A
Slip	2.92 %
Mounting	F-1
Frequency	60 Hz
Frame Material	Rolled Steel
Main Terminal Box Hole	0.881"
Drain	Rubber, automatic
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Industrial polymer
Fan Material	Plastic
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6204 ZZ
NDE Bearing Seal	Without Bearing Seal
