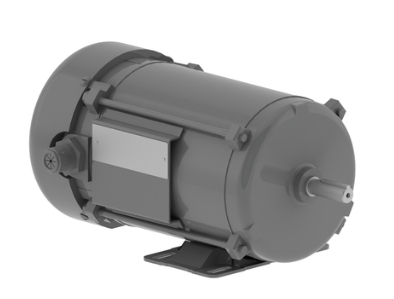

Explosion-proof Motor Standard Efficiency 1 HP 4P D56EX 3Ph 230/460 V 60 Hz IC411 - TEFC - Foot-mounted

Name: 1 HP 1800 2X4V EXP D56
Brand: WEG
SKU: XF000404
Price: 900.00 CAD
Availability: InStock

Part Number: XF000404

List Price: $900.00

Quantity:

Request Different Configuration

Inventory: Call for stock

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

HP	1 HP
RPM	1800 rpm

Voltage	230/460 V
Enclosure	IC411 - TEFC

Flange	Without
Output	1 HP (0.75 kW)
Terminal Box	Without Terminal Box
Ambient Temperature	-20°C to +40°C
Duty Cycle	Cont.(S1)
Service Factor	1.15 (1.00 @ 208V)
Design	A
Locked Rotor Time	27s (cold) 15s (hot)
Rated Torque	3.02 ft.lb
LRC	6.5x(Code J)
Rated Current	3.00/1.50 A
Rated Speed	1740 rpm
Degree of Protection	IP44
Standard	NEMA MG-1
Impregnation Method	Dip and Bake Polyester
Painting	RAL 7022 207N (ISO 12944 - C2)
Fan Cover Material	Steel
Fan Material	Plastic
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6203 ZZ
NDE Bearing Seal	Without Bearing Seal
