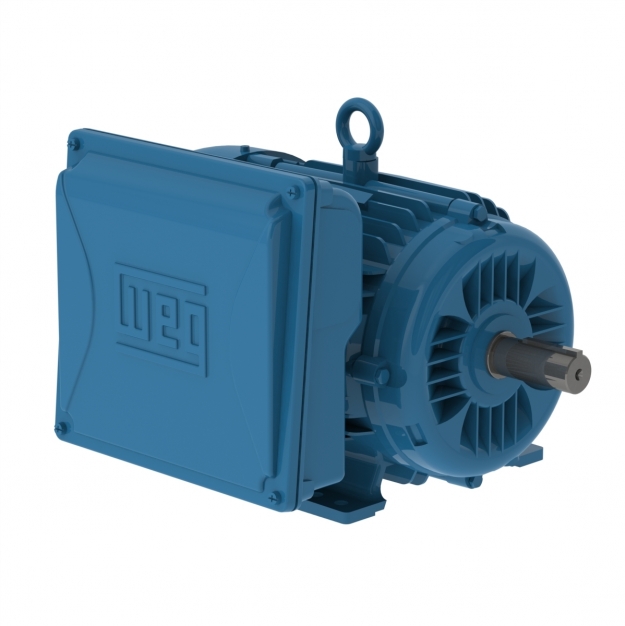

W22 10 HP 4P 213/5T 1Ph 208-230/460 V 60 Hz IC411 - TEFC - Foot-mounted

Name: 10 HP 1800 2X4V 1/60 213/5T IP55 TEFC W22
Brand: WEG
SKU: TS010104W22
Price: 4210.00 CAD
Availability: InStock

Part Number: TS010104W22

List Price: $4,210.00

Quantity:

Request Different Configuration

Inventory: Call for stock

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

Voltage	208-230/460 V
RPM	1800 rpm

HP	10 HP
Enclosure	IC411 - TEFC

Flange	Without
Output	10 HP (7.5 kW)
Terminal Box	Left position
Ambient Temperature	-20°C to +40°C
Duty Cycle	Cont.(S1)
Service Factor	1.15 (1.00 @ 208V)
Moment of Inertia (J)	1.15 sq.ft.lb
Breakdown Torque	240 %
No Load Current	9.66-11.2/5.60 A
L. R. Amperes	298-273/137 A
Slip	3.33 %
Mounting	F-1
Frequency	60 Hz
Frame Material	Cast Iron
Main Terminal Box Hole	NPT 1"
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Grounding Lugs	Single
Tropicalized Painting	Without
Bearing Cap	No-Without Bearing Cap
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6308 ZZ
NDE Bearing Seal	V'Ring
