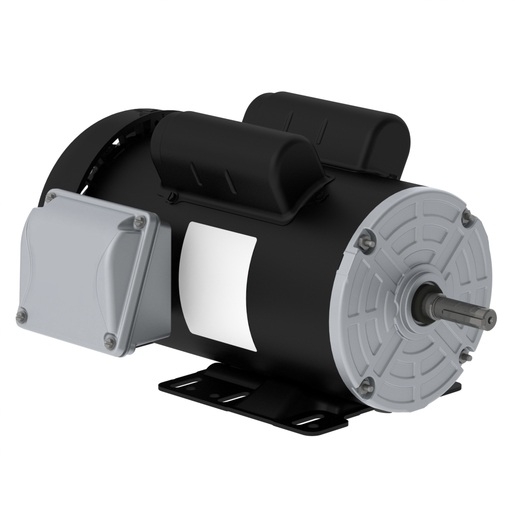

Rolled Steel 0.25 HP 4P W56 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Foot-mounted

Name: .25HP 1800 1X2V TEFC W56 1PH W01 DOE
Brand: WEG
SKU: TF.25104W01DOE
Price: 285.00 CAD
Availability: InStock

Part Number: TF.25104W01DOE

List Price: $285.00

Quantity:

Request Different Configuration

Inventory: In stock

HP	0.25 HP
RPM	1800 rpm

Voltage	115/208-230 V
Enclosure	IC411 - TEFC

Frame	W56
Voltage	115/208-230 V
Number of Poles	4
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.0399 sq.ft.lb
Breakdown Torque	290 %
No Load Current	2.00/0.862-1.00 A
L. R. Amperes	21.8/12.0-10.9 A
Slip	3.06 %
Mounting	F-1
Frequency	60 Hz
Frame Material	Rolled Steel
Main Terminal Box Hole	0.881"
Drain	Rubber, automatic
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Industrial polymer
Fan Material	Plastic
Balancing Method	Not Balanced
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6203 ZZ
NDE Bearing Seal	Without Bearing Seal
