Part Number: PB100402NPW22405HPH
List Price: Please contact us for pricing
Inventory: Call for stock
*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)
General Information
Technical Details

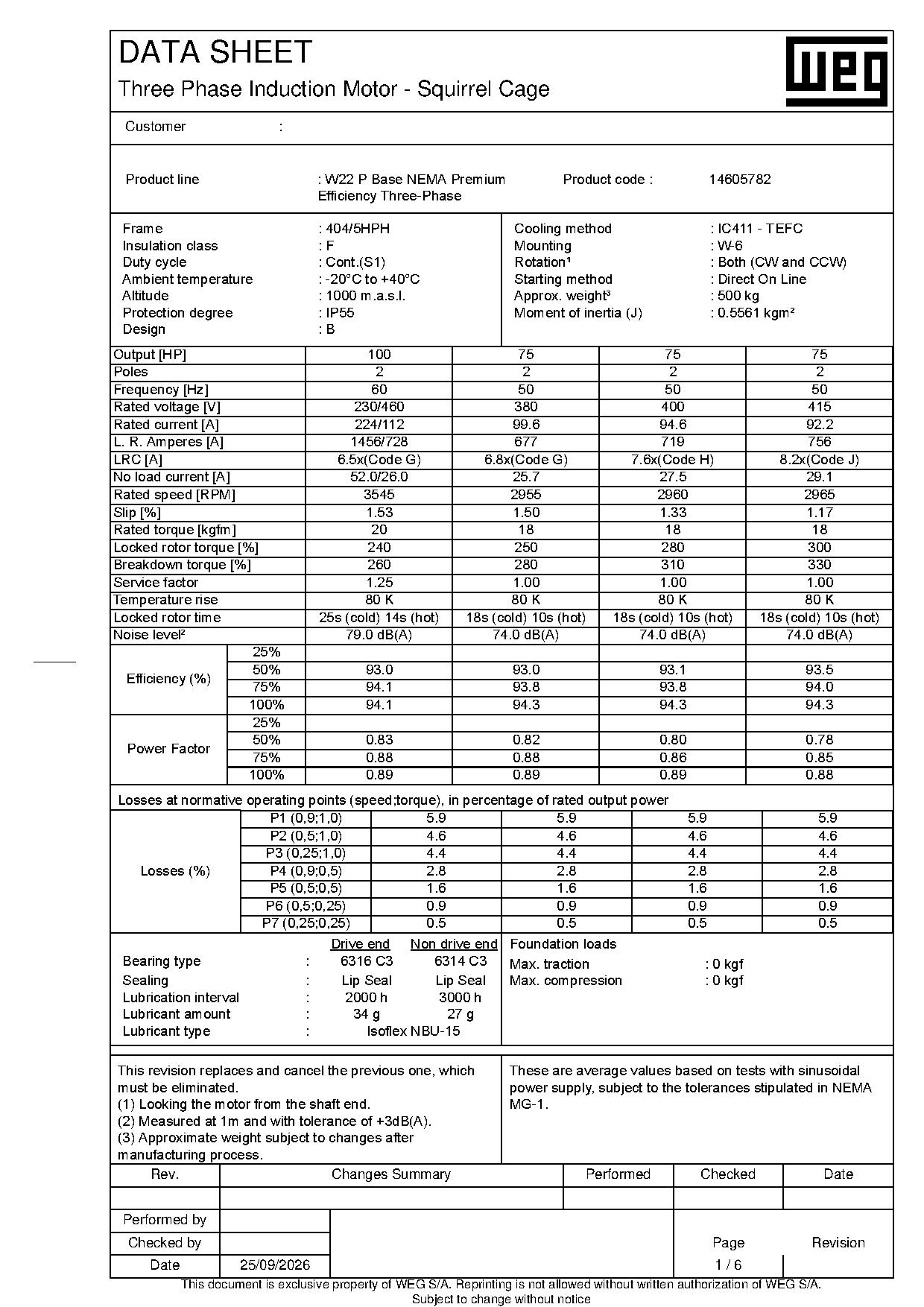

Download Center
Voltage 230/460//380 V Enclosure IC411 - TEFC
Frame 404/5HPH Voltage 230/460 V Number of Poles 2 Altitude 1000 m.a.s.l. Starting Method Direct On Line Temperature Rise 80 K Insulation Class F Moment of Inertia (J) 13.2 sq.ft.lb Breakdown Torque 260 % No Load Current 52.0/26.0 A L. R. Amperes 1456/728 A Slip 1.53 % Mounting W-6 Frequency 60 Hz Frame Material Cast Iron Main Terminal Box Hole NPT 3" Shaft Locking Device Without Shaft Material SAE 1040/45 Carbon Steel Grounding Lugs Double Tropicalized Painting Without Bearing Cap Yes- Bearing Cap Drip Cover With NDE Bearing 6314 C3 Locked Rotor Torque 240 % Noise Level 79.0 dB(A) Sealing Lip Seal
Flange P Output 100 HP (75 kW) Terminal Box Left position Ambient Temperature -20°C to +40°C Duty Cycle Cont.(S1) Service Factor 1.25 Design B Locked Rotor Time 25s (cold) 14s (hot) Rated Torque 148 ft.lb LRC 6.5x(Code G) Rated Current 224/112 A Rated Speed 3545 rpm Degree of Protection IP55 Standard 00006 Impregnation Method Constant Resin Flow Terminal Block Without Drain Rubber, automatic Painting RAL 5009 203A (ISO 12944 - C3) Fan Cover Material Cast Iron Fan Material Plastic Balancing Method 1/2 Key Overload Protector (Phenolic) Without overload protector Grease Type Isoflex NBU-15 Rotation Both (CW and CCW) Bearing Type 6316 C3 NDE Bearing Seal Lip Seal
