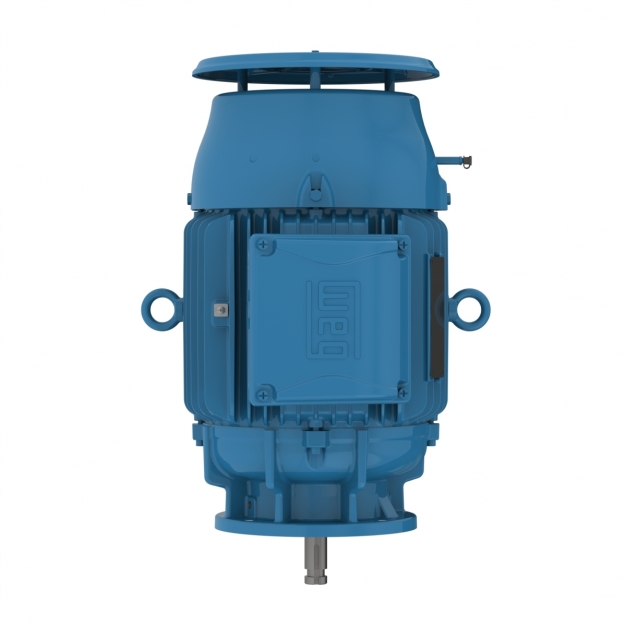

W22 P Base NEMA Premium Efficiency 15 HP 2P 254HP 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Footless

Name: 15 HP 3600 2X4 PBASE 254HP NP W22
Brand: WEG
SKU: PB015402NPW22
Price: 6700.00 CAD
Availability: InStock

Part Number: PB015402NPW22

List Price: $6,700.00

Quantity:

Request Different Configuration

Call for stock

Voltage	230/460//380 V
RPM	3600 rpm

HP	15 HP
Enclosure	IC411 - TEFC

Flange	P
Output	15 HP (11 kW)
Terminal Box	Left position
Ambient Temperature	-20°C to +40°C
Duty Cycle	Cont.(S1)
Service Factor	1.25
Design	B
Locked Rotor Time	37s (cold) 21s (hot)
Rated Torque	22.3 ft.lb
LRC	6.7x(Code G)
Rated Current	34.5/17.2 A
Rated Speed	3530 rpm
Degree of Protection	IP55
Standard	NEMA MG-1
Impregnation Method	Dip and Bake Polyester
Terminal Block	Without
Drain	Rubber, automatic
Painting	RAL 5009 203A (ISO 12944 - C3)
Fan Cover Material	Cast Iron
Fan Material	Plastic
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6311 C3
