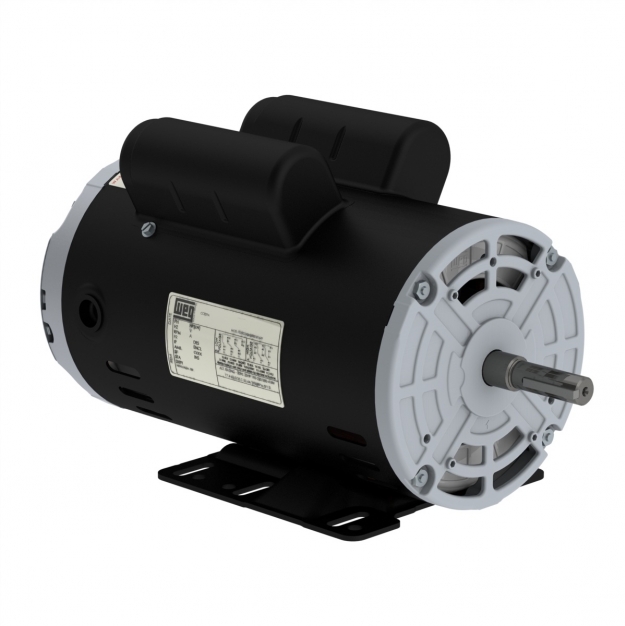

ELECTRIC MOTOR SINGLE PHASE 1.5 HP 02 56 115/208-230 WCA2 60Hz F-1/B3R(D) IP21 DIMENSIONS ACC. CONFIGURATION PREMIUM EFFICIENCY ROLLED STEEL SING

Name: 1.5HP 3600 1X2 ODP 56 1PH W01 DOE
Brand: WEG
SKU: OF001102W01DOE
Price: 828.00 CAD
Availability: InStock

Part Number: OF001102W01DOE

List Price: $828.00

Quantity:

Request Different Configuration

Inventory: Call for stock

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

HP	1.5 HP
Enclosure	IC01 - ODP

Frame	56
Voltage	115/208-230 V
Number of Poles	2
Class	MOTOR ROLLED STEEL
Detail	IE2
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.0629 sq.ft.lb
Breakdown Torque	270 %
No Load Current	3.20/1.38-1.60 A
L. R. Amperes	102/53.1-51.2 A
Slip	2.78 %
Mounting	F-1/B3R(D)
Standard	NEMA
Impregnation Method	Dip and Bake Polyester
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Without Fan Cover
Fan Material	Without fan
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6204 ZZ
NDE Bearing Seal	Without Bearing Seal
