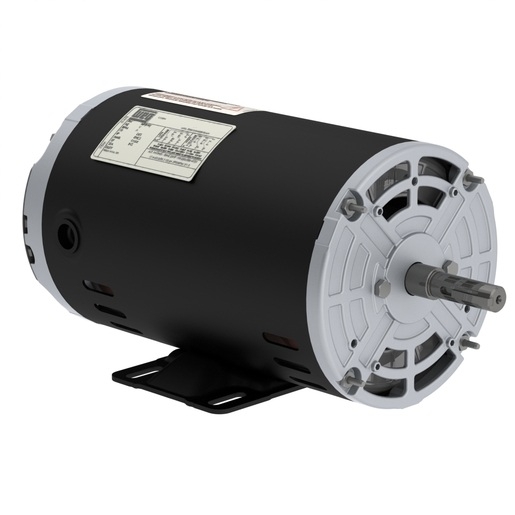

ELECTRIC MOTOR THREE PHASE 0.75 HP 04 56 575 C/W 3 leads WCA2 60Hz F-1/B3R(D) IP21 DIMENSIONS ACC. CONFIGURATION PREMIUM EFFICIENCYROLLED STEEL

Name: .75HP 1800 575 ODP 56 3PH W01 DOE
Brand: WEG
SKU: OF.75504W01DOE
Price: 556.00 CAD
Availability: InStock

Part Number: OF.75504W01DOE

List Price: $556.00

Quantity:

Request Different Configuration

Inventory: In stock

HP	0.75 HP
RPM	1800 rpm

Voltage	575V
Enclosure	IC01 - ODP

Frame	56
Voltage	575 V
Number of Poles	4
Class	MOTOR ROLLED STEEL
Detail	IE2
Polarity	04
Ambient Temperature	-20°C to +40°C
Duty Cycle	Cont.(S1)
Service Factor	1.25
Moment of Inertia (J)	0.0712 sq.ft.lb
Breakdown Torque	300 %
No Load Current	0.640 A
L. R. Amperes	6.72 A
Slip	2.22 %
Mounting	F-1/B3R(D)
Standard	NEMA
Impregnation Method	Dip and Bake Polyester
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Without Fan Cover
Fan Material	Without fan
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6203 ZZ
NDE Bearing Seal	Without Bearing Seal
