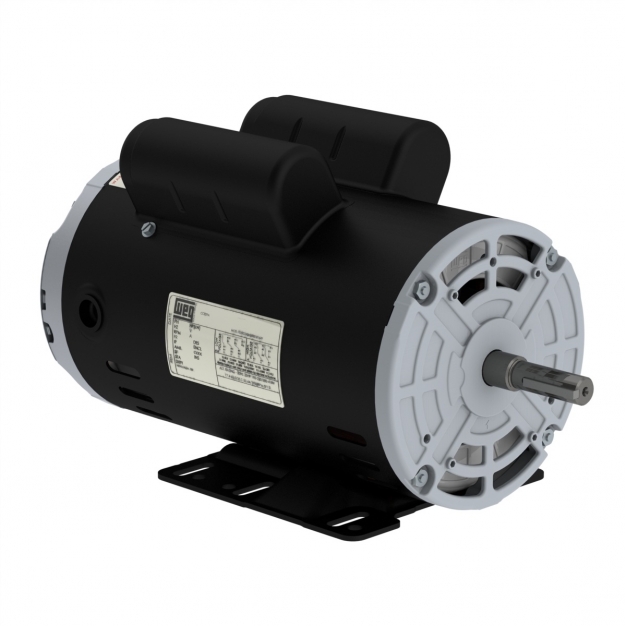

ELECTRIC MOTOR SINGLE PHASE 0.75 HP 04 56 115/208-230 WCA2 60Hz F-1/B3R(D) IP21 DIMENSIONS ACC. CONFIGURATION PREMIUM EFFICIENCY ROLLED STEEL SIN

Name: .75HP 1800 1X2 ODP 56 DOE W01
Brand: WEG
SKU: OF.75104W01DOE
Price: 804.00 CAD
Availability: InStock

Part Number: OF.75104W01DOE

List Price: $804.00

Quantity:

Request Different Configuration

Inventory: In stock

HP	0.75 HP
RPM	1800 rpm

Voltage	115/208-230V
Enclosure	IC01 - ODP

Flange	Without
Output	0.75 HP (0.55 kW)
Terminal Box	Without Terminal Box
Application	ROLLED STEEL
Power	0.75 HP
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.0973 sq.ft.lb
Breakdown Torque	250 %
No Load Current	2.96/1.28-1.48 A
L. R. Amperes	54.4/30.1-27.2 A
Slip	2.78 %
Mounting	F-1/B3R(D)
Standard	NEMA MG-1
Impregnation Method	Dip and Bake Polyester
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Without Fan Cover
Fan Material	Without fan
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6203 ZZ
NDE Bearing Seal	Without Bearing Seal
