*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

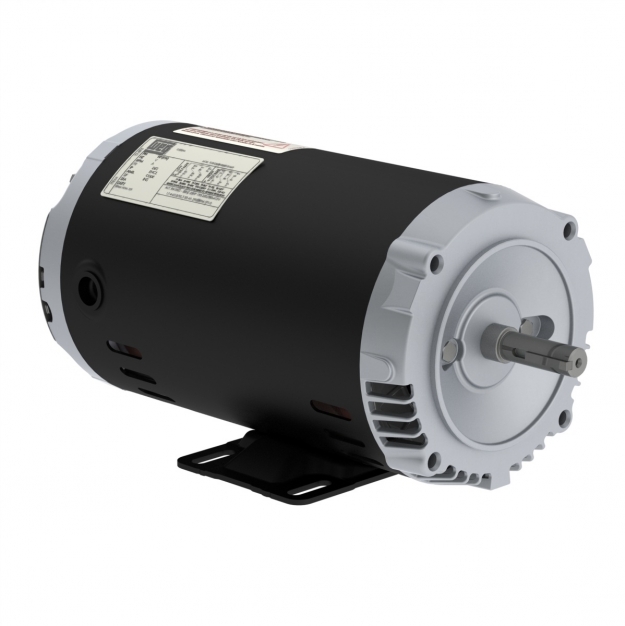

HP
3 HP
RPM
3600 rpm
Voltage
575 V
Enclosure
IC01 - ODP
Frame
56HC
Voltage
575 V
Number of Poles
2
Altitude
1000 m.a.s.l.
Starting Method
Direct On Line
Temperature Rise
80 K
Insulation Class
F
Moment of Inertia (J)
0.1279 sq.ft.lb
Breakdown Torque
300 %
No Load Current
1.04 A
L. R. Amperes
23.0 A
Slip
3.33 %
Mounting
F-1
Standard
NEMA MG-1
Impregnation Method
Dip and Bake Polyester
Painting
Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material
Without Fan Cover
Fan Material
Without fan
Balancing Method
1/2 Key
Overload Protector (Phenolic)
Without overload protector
Grease Type
Mobil Polyrex EM
Rotation
Both (CW and CCW)
Bearing Type
6204 ZZ
NDE Bearing Seal
Without Bearing Seal
Flange
C
Output
3 HP (2.2 kW)
Terminal Box
Without Terminal Box
Ambient Temperature
-20°C to +40°C
Duty Cycle
Cont.(S1)
Service Factor
1.15
Design
A
Locked Rotor Time
16s (cold) 9s (hot)
Rated Torque
4.53 ft.lb
LRC
8.0x(Code J)
Rated Current
2.87 A
Rated Speed
3480 rpm
Frequency
60 Hz
Frame Material
Rolled Steel
Shaft Material
SAE 1040/45 Carbon Steel
Grounding Lugs
Single
Tropicalized Painting
Without
Bearing Cap
Yes- Bearing Cap
Drip Cover
Without
NDE Bearing
6202 ZZ
Locked Rotor Torque
229 %
Noise Level
62.0 dB(A)
Sealing
Without Bearing Seal
