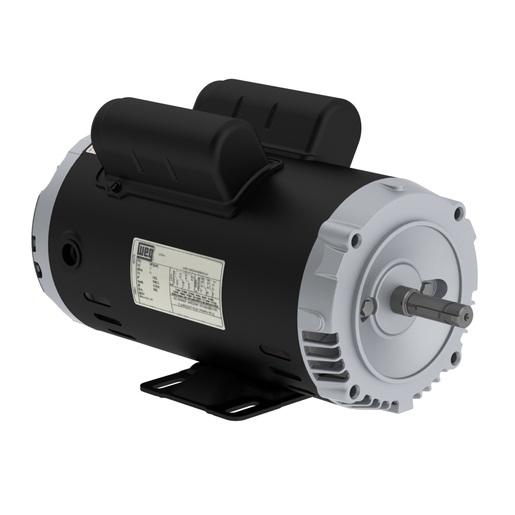

Rolled Steel 0.5 HP 2P W56C 1Ph 115/208-230 V 60 Hz IC01 - ODP - Foot-mounted

Name: .50HP 3600 1X2 ODP W56C W01 DOE
Brand: WEG
SKU: OC.50102W01DOE
Price: 302.00 CAD
Availability: InStock

Part Number: OC.50102W01DOE

List Price: $302.00

Quantity:

Request Different Configuration

Inventory: Call for stock

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

HP	0.5 HP
RPM	3600 rpm

Voltage	115/208-230 V
Enclosure	IC01 - ODP

Frame	W56C
Voltage	115/208-230 V
Number of Poles	2
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.0254 sq.ft.lb
Breakdown Torque	300 %
No Load Current	1.60/0.690-0.800 A
L. R. Amperes	42.2/23.3-21.1 A
Slip	2.50 %
Mounting	F-1
Standard	NEMA MG-1
Impregnation Method	Dip and Bake Polyester
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Without Fan Cover
Fan Material	Without fan
Balancing Method	Not Balanced
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6203 ZZ
NDE Bearing Seal	Without Bearing Seal
