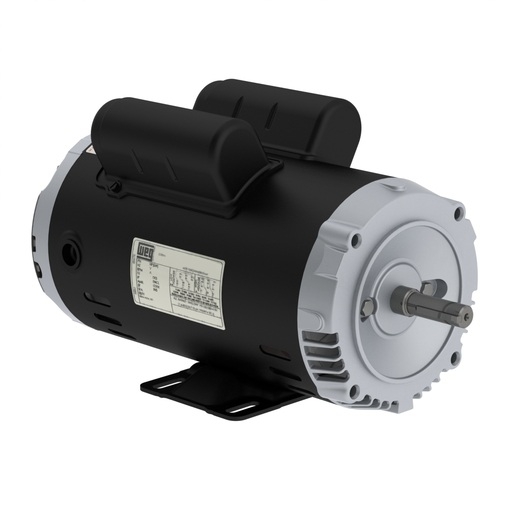

ELECTRIC MOTOR SINGLE PHASE 0.33 HP 02 W56C 115/208-230 WCA2 60Hz F-1/B34R(D) IP21 DIMENSIONS ACC. CONFIGURATION PREMIUM EFFICIENCYROLLED STEEL

Name: .33HP 3600 1X2 ODP W56C W01
Brand: WEG
SKU: OC.33102W01DOE
Price: 602.00 CAD
Availability: InStock

Part Number: OC.33102W01DOE

List Price: $602.00

Quantity:

Request Different Configuration

Inventory: In stock

Voltage	115/208-230V
RPM	3600 rpm

HP	0.33 HP
Enclosure	IC01 - ODP

Flange	C
Output	0.33 HP (0.25 kW)
Terminal Box	Without Terminal Box
Application	ROLLED STEEL
Power	0.33 HP
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.0254 sq.ft.lb
Breakdown Torque	300 %
No Load Current	1.00/0.431-0.500 A
L. R. Amperes	28.2/15.6-14.1 A
Slip	2.50 %
Mounting	F-1/B34R(D)
Standard	NEMA
Impregnation Method	Dip and Bake Polyester
Painting	RAL 7022 207N (ISO 12944 - C2)
Fan Cover Material	Without Fan Cover
Fan Material	Without fan
Balancing Method	Not Balanced
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6203 ZZ
NDE Bearing Seal	Without Bearing Seal
