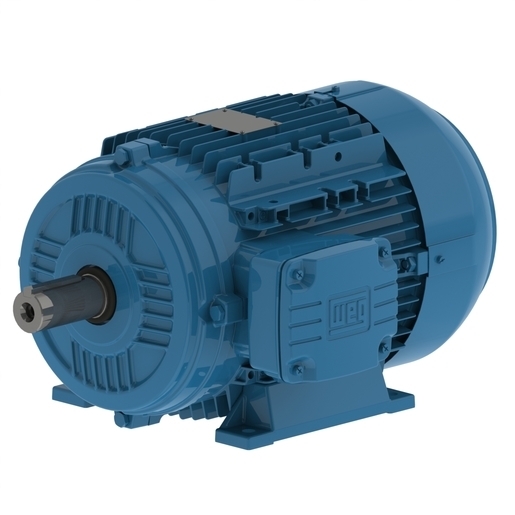

Multimounting IE3 5.5 HP 4P 112M 3Ph 575 V 60 Hz IC411 - TEFC - B3L(E)

Name: 5.5HP 1800 575 TEFC 112M NP W22 TM ALUM
Brand: WEG
SKU: ME5.5504W22112MA
Price: 1862.00 CAD
Availability: InStock

Part Number: ME5.5504W22112MA

List Price: $1,862.00

Quantity:

Request Different Configuration

Inventory: Call for stock

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

Voltage	575 V
RPM	1800 rpm

HP	5.5 HP
Enclosure	IC411 - TEFC

Frame	112M
Voltage	575 V
Number of Poles	4
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.4312 sq.ft.lb
Breakdown Torque	350 %
No Load Current	3.40 A
Rated Current	5.82 A
Rated Speed	1755 rpm
Degree of Protection	IP55
Standard	00004
Impregnation Method	Dip and Bake Polyester
Terminal Block	BMC - 6 pins
Drain	Rubber, automatic
Painting	RAL 5009 207A (ISO 12944 - C3)
Fan Cover Material	Steel
Fan Material	Plastic
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6307 ZZ
NDE Bearing Seal	V'Ring
