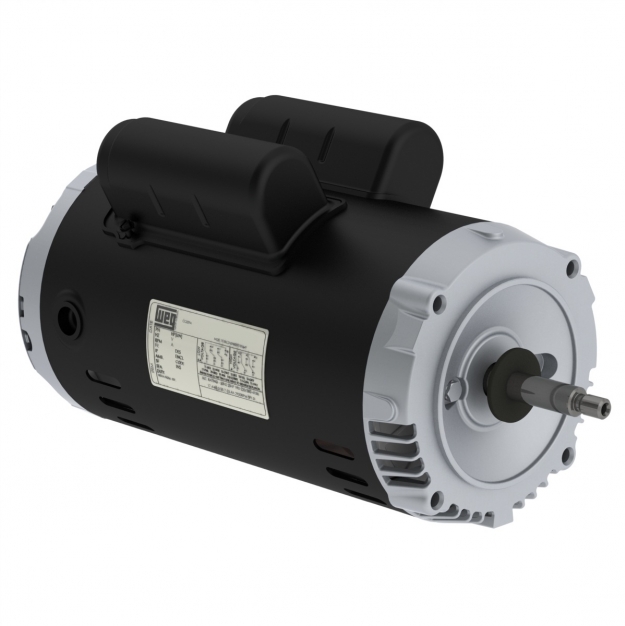

Rolled Steel Jet Pump - C type 3 HP 2P 56C 1Ph 230 V 60 Hz IC01 - ODP - Footless

Name: 3 HP 3600 230 ODP 56C JET 1PH W01 DOE
Brand: WEG
SKU: KO003102W01DOE
Price: 1254.00 CAD
Availability: InStock

Part Number: KO003102W01DOE

List Price: $1,254.00

Quantity:

Request Different Configuration

Inventory: Call for stock

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

Voltage	230 V
RPM	3600 rpm

HP	3 HP
Enclosure	IC01 - ODP

Frame	56C
Voltage	230 V
Number of Poles	2
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.0944 sq.ft.lb
Breakdown Torque	280 %
No Load Current	3.90 A
L. R. Amperes	100 A
Slip	2.78 %
Mounting	F-1
Standard	NEMA MG-1
Impregnation Method	Dip and Bake Polyester
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Without Fan Cover
Fan Material	Without fan
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Automatic
Grease Type	Mobil Polyrex EM
Rotation	CCW
Bearing Type	6203 2RS
NDE Bearing Seal	Without Bearing Seal
