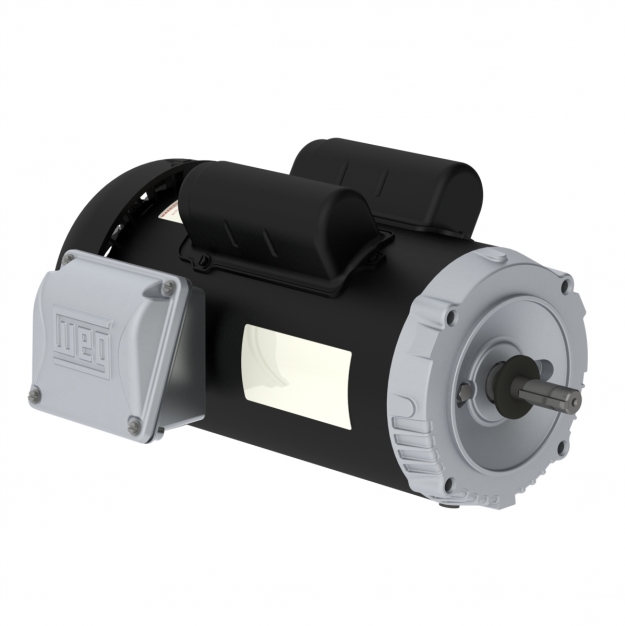

ELECTRIC MOTOR SINGLE PHASE 2 HP 02 56J 115/208-230 WCF2 60Hz F-1/B14R(D) IP55 PREMIUM EFFICIENCY JET PUMP MONO

Name: 2 HP 3600 1X2 TEFC 56J TRD JET W01 DOE
Brand: WEG
SKU: JT002102W01DOE
Price: 1124.00 CAD
Availability: InStock

Part Number: JT002102W01DOE

List Price: $1,124.00

Quantity:

Request Different Configuration

Inventory: Call for stock

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

HP	2 HP
Enclosure	IC411 - TEFC

Frame	56
Voltage	115/208-230 V
Number of Poles	2
Class	MOTOR ROLLED STEEL
Detail	IE2
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.0785 sq.ft.lb
Breakdown Torque	270 %
No Load Current	3.60/1.55-1.80 A
L. R. Amperes	138/74.7-69.1 A
Slip	2.78 %
Mounting	F-1/B14R(D)
Frequency	60 Hz
Frame Material	Rolled Steel
Main Terminal Box Hole	0.881"
Drain	Rubber, automatic
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Industrial polymer
Fan Material	Plastic
Balancing Method	Without Key
Overload Protector (Phenolic)	Automatic
Grease Type	Mobil Polyrex EM
Rotation	CCW
Bearing Type	6203 2RS
NDE Bearing Seal	Without Bearing Seal
