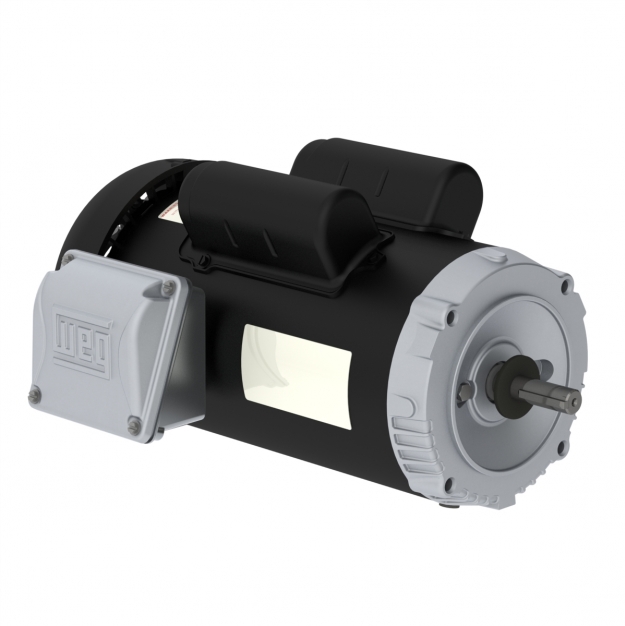

Rolled Steel Jet Pump - J type 0.33 HP 2P W56J 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Footless

Name: .33HP 3600 1X2 TEFC 56J THD JET W01 DOE
Brand: WEG
SKU: JT.33102W01DOE
Price: 280.00 CAD
Availability: InStock

Part Number: JT.33102W01DOE

List Price: $280.00

Quantity:

Request Different Configuration

Inventory: In stock

HP	0.33 HP
RPM	3600 rpm

Voltage	115/208-230 V
Enclosure	IC411 - TEFC

Frame	W56J
Voltage	115/208-230 V
Number of Poles	2
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.0273 sq.ft.lb
Breakdown Torque	320 %
No Load Current	1.00/0.431-0.500 A
L. R. Amperes	28.6/15.8-14.3 A
Slip	2.64 %
Mounting	F-1
Frequency	60 Hz
Frame Material	Rolled Steel
Main Terminal Box Hole	0.881"
Drain	Rubber, automatic
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Industrial polymer
Fan Material	Plastic
Balancing Method	Not Balanced
Overload Protector (Phenolic)	Automatic
Grease Type	Mobil Polyrex EM
Rotation	CCW
Bearing Type	6203 2RS
NDE Bearing Seal	Without Bearing Seal
