Part Number: JT.25402W01DOE
List Price: Please contact us for pricing
Inventory: In stock
*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)
General Information
Technical Details
Download Center

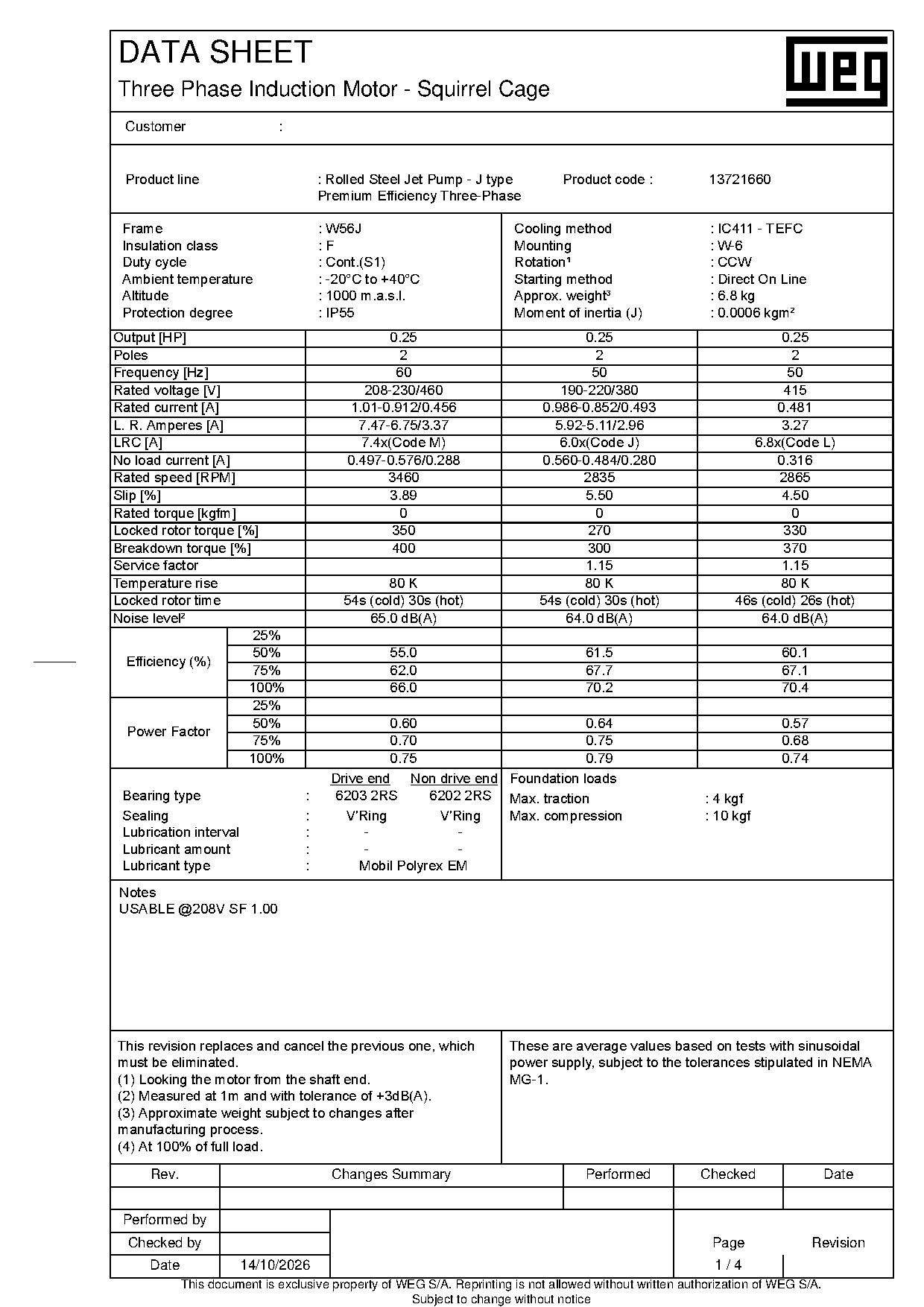

Voltage 208-230/460//190-220/380-415 V Enclosure IC411 - TEFC
Frame W56J Voltage 208-230/460 V Number of Poles 2 Altitude 1000 m.a.s.l. Starting Method Direct On Line Temperature Rise 80 K Insulation Class F Locked Rotor Time 54s (cold) 30s (hot) Rated Torque 0.379 ft.lb LRC 7.4x(Code M) Rated Current 1.01-0.912/0.456 A Rated Speed 3460 rpm Degree of Protection IP55 Standard NEMA MG-1 Impregnation Method Dip and Bake Polyester Terminal Block Without Shaft Material AISI 304 Stainless Steel Grounding Lugs Single Tropicalized Painting Without Bearing Cap Yes- Bearing Cap Drip Cover Without NDE Bearing 6202 2RS Locked Rotor Torque 350 % Noise Level 65.0 dB(A) Sealing V'Ring
Flange C Output 0.25 HP (0.18 kW) Terminal Box Left position Ambient Temperature -20°C to +40°C Duty Cycle Cont.(S1) Service Factor 1.15 (1.00 @ 208V) Moment of Inertia (J) 0.0147 sq.ft.lb Breakdown Torque 400 % No Load Current 0.497-0.576/0.288 A L. R. Amperes 7.47-6.75/3.37 A Slip 3.89 % Mounting W-6 Frequency 60 Hz Frame Material Rolled Steel Main Terminal Box Hole 0.881" Drain Rubber, automatic Painting Munsell N 1 - Matte 207N (ISO 12944 - C2) Fan Cover Material Industrial polymer Fan Material Plastic Balancing Method Not Balanced Overload Protector (Phenolic) Without overload protector Grease Type Mobil Polyrex EM Rotation CCW Bearing Type 6203 2RS NDE Bearing Seal V'Ring
