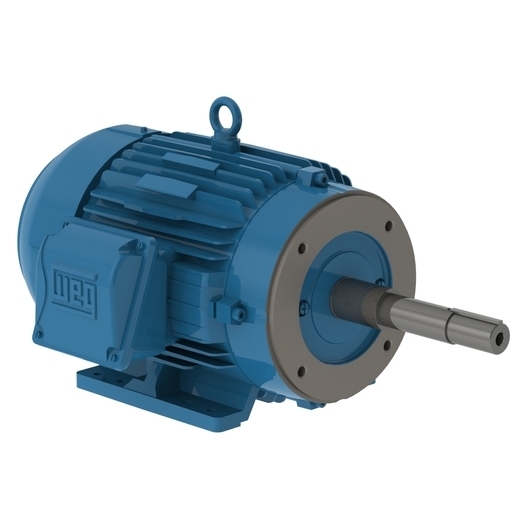

W22 Close Coupled Pump JP NEMA Premium Efficiency 25 HP 4P 284/6JP 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

Name: 25 HP 1800 2X4 TEFC 284/6JP NP W22
Brand: WEG
SKU: JP025404NPW22
Price: 3125.00 CAD
Availability: InStock

Part Number: JP025404NPW22

List Price: $3,125.00

Quantity:

Request Different Configuration

Inventory: In stock

HP	25 HP
RPM	1800 rpm

Voltage	230/460//380 V
Enclosure	IC411 - TEFC

Flange	C
Output	25 HP (18.5 kW)
Terminal Box	Left position
Ambient Temperature	-20°C to +40°C
Duty Cycle	Cont.(S1)
Service Factor	1.25
Design	B
Locked Rotor Time	43s (cold) 24s (hot)
Rated Torque	74.2 ft.lb
LRC	6.2x(Code G)
Rated Current	59.0/29.5 A
Rated Speed	1770 rpm
Degree of Protection	IP55
Standard	00006
Impregnation Method	Dip and Bake Polyester
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Grounding Lugs	Single
Tropicalized Painting	Without
Bearing Cap	Yes- Bearing Cap
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6311 C3
NDE Bearing Seal	V'Ring
