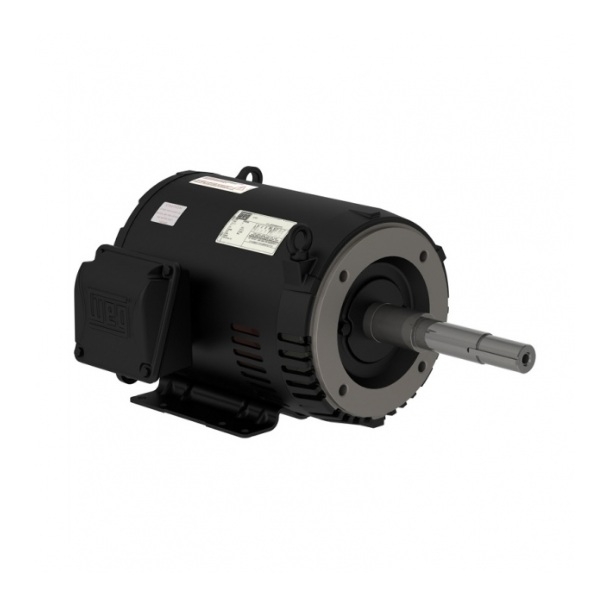

Rolled Steel JP Pump NEMA Premium Efficiency 20 HP 2P 254/6JP 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted

Name: 20 HP 3600 575 TEFC 254/6JP NP W01
Brand: WEG
SKU: JP020502NPW01
Price: 2120.00 CAD
Availability: InStock

Part Number: JP020502NPW01

List Price: $2,120.00

Quantity:

Request Different Configuration

Inventory: Call for stock

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

HP	20 HP
RPM	3600 rpm

Voltage	575 V
Enclosure	IC411 - TEFC

Frame	254/6JP
Voltage	575 V
Number of Poles	2
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	1.22 sq.ft.lb
Breakdown Torque	290 %
No Load Current	5.50 A
L. R. Amperes	120 A
Slip	2.36 %
Mounting	F-1
Frequency	60 Hz
Frame Material	Rolled Steel
Main Terminal Box Hole	1.732"
Drain	Rubber, automatic
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Steel
Fan Material	Plastic
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6309 Z C3
NDE Bearing Seal	Without Bearing Seal
