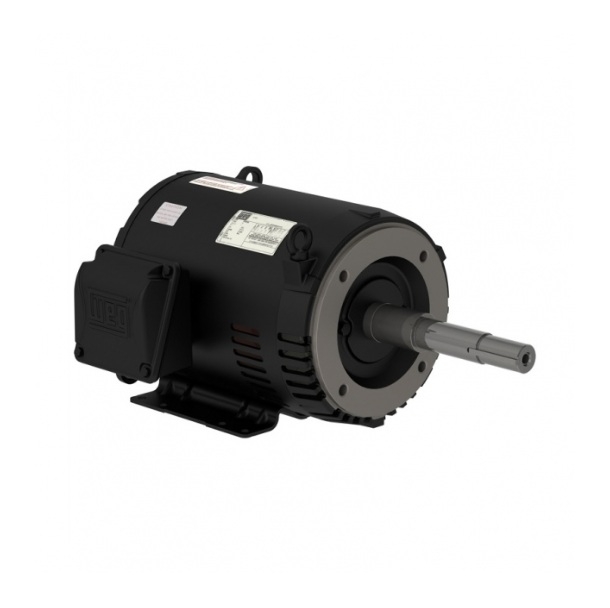

Rolled Steel JP Pump NEMA Premium Efficiency 7.5 HP 4P 213/5JP 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted

Name: 7.5HP 1800 575 ODP 213/5JP NP W01
Brand: WEG
SKU: JP007504DPNPW01
Price: 1001.00 CAD
Availability: InStock

Part Number: JP007504DPNPW01

List Price: $1,001.00

Quantity:

Request Different Configuration

Inventory: Call for stock

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

HP	7.5 HP
RPM	1800 rpm

Voltage	575 V
Enclosure	IC01 - ODP

Frame	213/5JP
Voltage	575 V
Number of Poles	4
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	1.03 sq.ft.lb
Breakdown Torque	320 %
No Load Current	3.51 A
L. R. Amperes	53.3 A
Slip	1.67 %
Mounting	F-1
Standard	NEMA MG-1
Impregnation Method	Dip and Bake Polyester
Terminal Block	Without
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Without Fan Cover
Fan Material	Without fan
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6209 ZZ
NDE Bearing Seal	Without Bearing Seal
