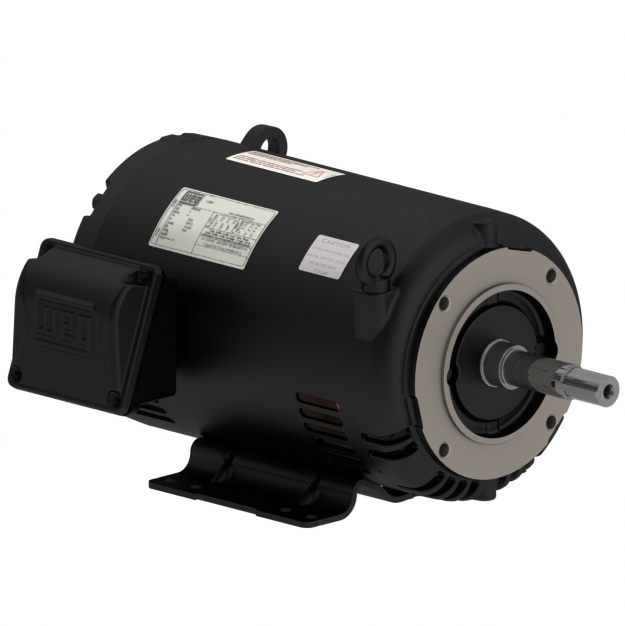

Rolled Steel JM Pump NEMA Premium Efficiency 15 HP 4P 254/6JM 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted

Name: 15 HP 1800 575V ODP 254/6JM NP W01
Brand: WEG
SKU: JM015504DPNPW01
Price: 1661.00 CAD
Availability: InStock

Part Number: JM015504DPNPW01

List Price: $1,661.00

Quantity:

Request Different Configuration

Inventory: Low Inventory

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

HP	15 HP
RPM	1800 rpm

Voltage	575 V
Enclosure	IC01 - ODP

Frame	254/6JM
Voltage	575 V
Number of Poles	4
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	1.82 sq.ft.lb
Breakdown Torque	300 %
No Load Current	7.60 A
L. R. Amperes	100 A
Slip	1.39 %
Mounting	F-1
Standard	NEMA MG-1
Impregnation Method	Dip and Bake Polyester
Terminal Block	Without
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Without Fan Cover
Fan Material	Without fan
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6309 Z C3
NDE Bearing Seal	Without Bearing Seal
