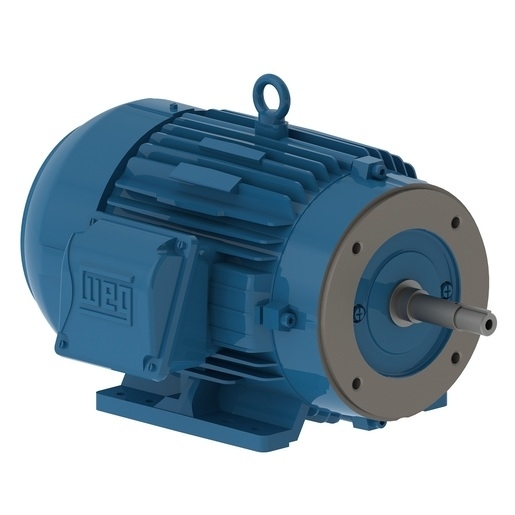

W22 Close Coupled Pump JM NEMA Premium Efficiency 1.5 HP 6P 182/4JM 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted

Name: 1.5HP 1200 575 TEFC 182/4JM NP W22
Brand: WEG
SKU: JM001506NPW22
Price: 1734.00 CAD
Availability: InStock

Part Number: JM001506NPW22

List Price: $1,734.00

Quantity:

Request Different Configuration

Inventory: Low Inventory

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

Voltage	575 V
RPM	1200 rpm

HP	1.5 HP
Enclosure	IC411 - TEFC

Frame	182/4JM
Voltage	575 V
Number of Poles	6
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.4879 sq.ft.lb
Breakdown Torque	400 %
No Load Current	1.30 A
L. R. Amperes	15.8 A
Slip	2.50 %
Mounting	F-1
Frequency	60 Hz
Frame Material	Cast Iron
Main Terminal Box Hole	NPT 1"
Drain	Rubber, automatic
Painting	RAL 5009 207A (ISO 12944 - C3)
Fan Cover Material	Steel
Fan Material	Plastic
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6307 ZZ
NDE Bearing Seal	V'Ring
