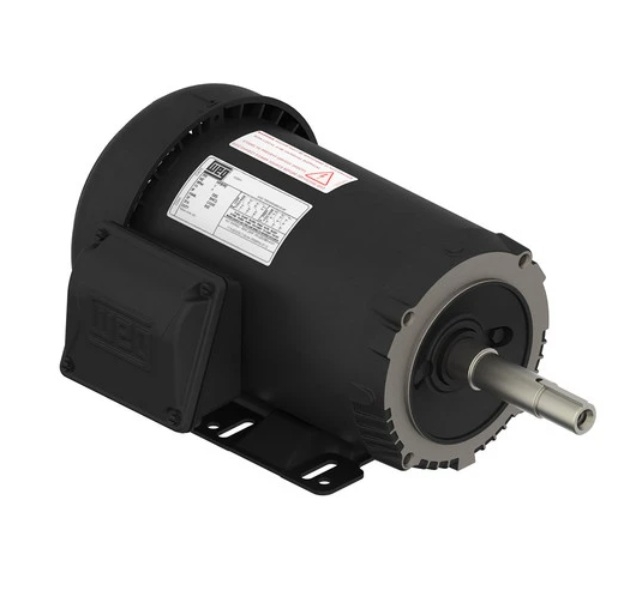

Rolled Steel JM Pump NEMA Premium Efficiency 1.5 HP 6P 182/4JM 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted

Name: 1.5HP 1200 2X4 TEFC 182/4JM NP W01
Brand: WEG
SKU: JM001406NPW01
Price: 691.00 CAD
Availability: InStock

Part Number: JM001406NPW01

List Price: $691.00

Quantity:

Request Different Configuration

Inventory: Low Inventory

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

HP	1.5 HP
RPM	1200 rpm

Voltage	230/460//190-220/380-415 V
Enclosure	IC411 - TEFC

Frame	182/4JM
Voltage	230/460 V
Number of Poles	6
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.2800 sq.ft.lb
Breakdown Torque	340 %
No Load Current	2.73/1.36 A
L. R. Amperes	30.6/15.3 A
Slip	2.50 %
Mounting	F-1
Frequency	60 Hz
Frame Material	Rolled Steel
Main Terminal Box Hole	1.118"
Drain	Rubber, automatic
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Steel
Fan Material	Plastic
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6207 ZZ
NDE Bearing Seal	Without Bearing Seal
