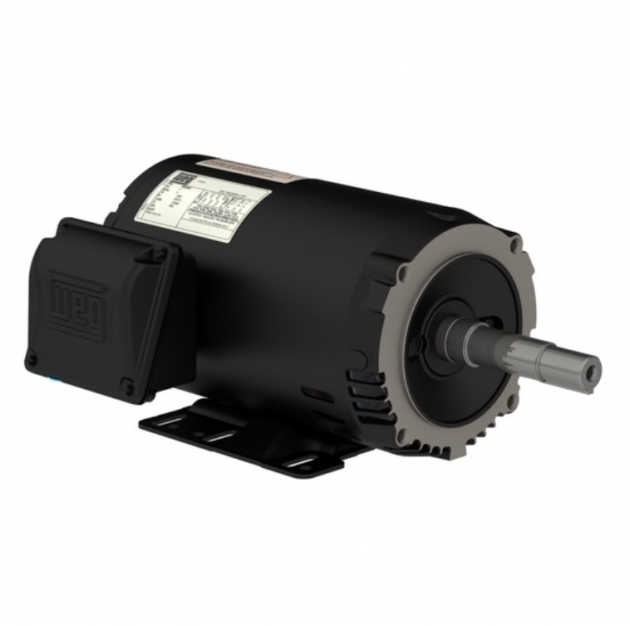

ELECTRIC MOTOR THREE PHASE 1.5 HP 04 143/5JM 208-230/460//190-220/380-415 WCA2 60Hz F-1/B34R(D) IP21 DIMENSIONS ACC. CONFIGURATION NEMA PREMIUM E

Name: 1.5HP 1800 2X4 ODP 143/5JM NP W01
Brand: WEG
SKU: JM001404DPNPW01
Price: 962.00 CAD
Availability: InStock

Part Number: JM001404DPNPW01

List Price: $962.00

Quantity:

Request Different Configuration

Low Inventory

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

Output	1.5 HP (1.1 kW)
Class	MOTOR ROLLED STEEL
Detail	NEMA PREMIUM EFFICIENCY
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.1426 sq.ft.lb
Breakdown Torque	330 %
No Load Current	2.40/1.20 A
L. R. Amperes	36.0/18.0 A
Slip	2.22 %
Mounting	F-1/B34R(D)
Standard	NEMA
Impregnation Method	Dip and Bake Polyester
Terminal Block	Without
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Without Fan Cover
Fan Material	Without fan
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6206 ZZ
NDE Bearing Seal	Without Bearing Seal
