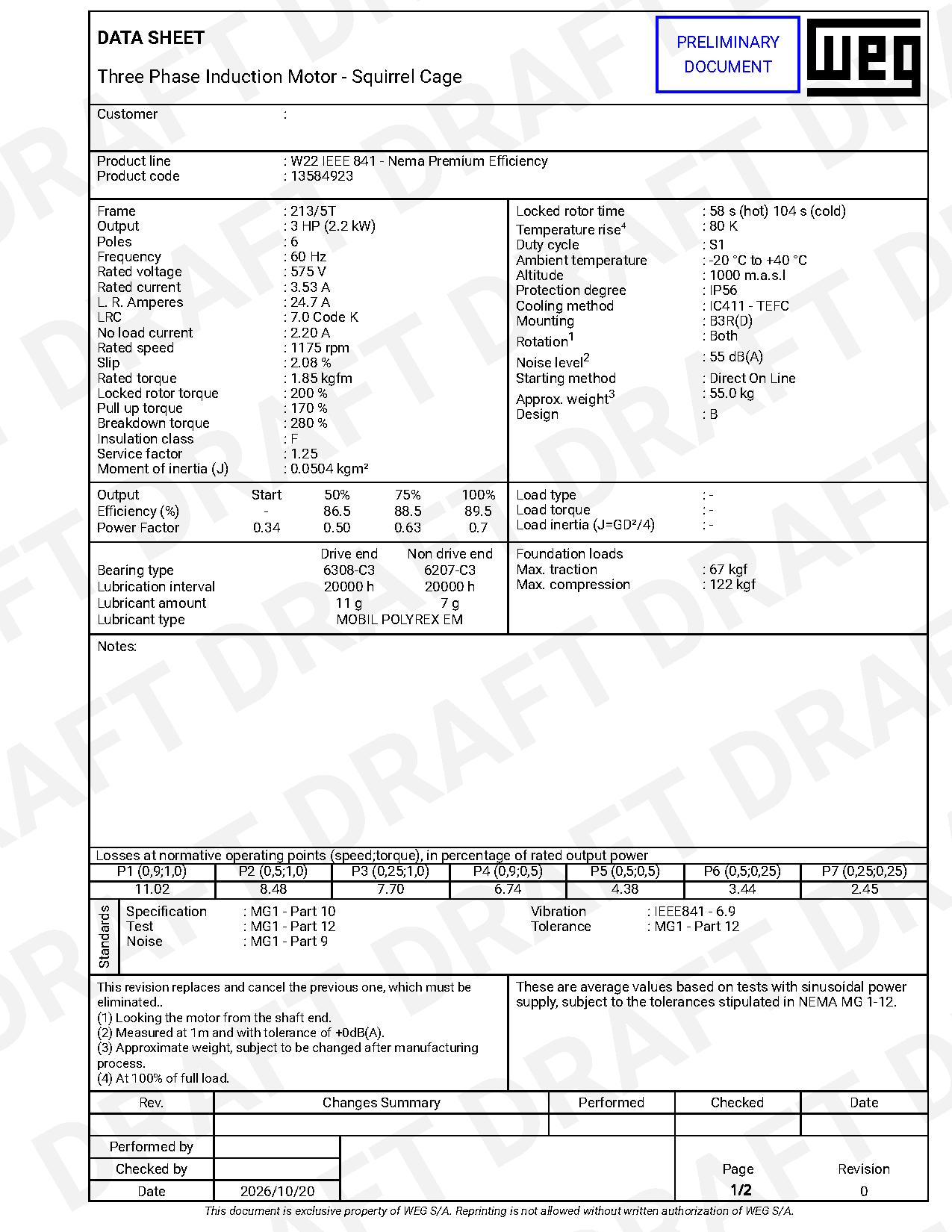

HP
3 HP
RPM
1200 rpm
Voltage
575 V
Enclosure
IC411 - TEFC
Frame
213/5T
Voltage
575 V
Number of Poles
6
Altitude
1000 m.a.s.l.
Starting Method
Direct On Line
Temperature Rise
80 K
Insulation Class
F
Moment of Inertia (J)
1.20 sq.ft.lb
Breakdown Torque
280 %
No Load Current
2.20 A
L. R. Amperes
24.7 A
Slip
2.08 %
Mounting
F-1
Frequency
60 Hz
Frame Material
Cast Iron
Main Terminal Box Hole
NPT 1"
Shaft Locking Device
Without
Shaft Material
SAE 1040/45 Carbon Steel
Grounding Lugs
Double
Tropicalized Painting
According to IEEE-841 (96h)
Bearing Cap
Yes- Bearing Cap
Drip Cover
Without
NDE Bearing
6207 C3
Locked Rotor Torque
200 %
Noise Level
55.0 dB(A)
Sealing
Inpro/Seal
Flange
Without
Output
3 HP (2.2 kW)
Terminal Box
Left position
Ambient Temperature
-20°C to +40°C
Duty Cycle
Cont.(S1)
Service Factor
1.25
Design
B
Locked Rotor Time
104s (cold) 58s (hot)
Rated Torque
13.4 ft.lb
LRC
7.0x(Code K)
Rated Current
3.53 A
Rated Speed
1175 rpm
Degree of Protection
IP56
Standard
00006
Impregnation Method
Dip and Bake Polyester
Terminal Block
Without
Drain
Type T, Threaded
Painting
RAL 5009 202E (ISO 12944 - C4)
Fan Cover Material
Cast Iron
Fan Material
Conductive Plastic
Balancing Method
1/2 Key
Overload Protector (Phenolic)
Without overload protector
Grease Type
Mobil Polyrex EM
Rotation
Both (CW and CCW)
Bearing Type
6308 C3
NDE Bearing Seal
Inpro/Seal
