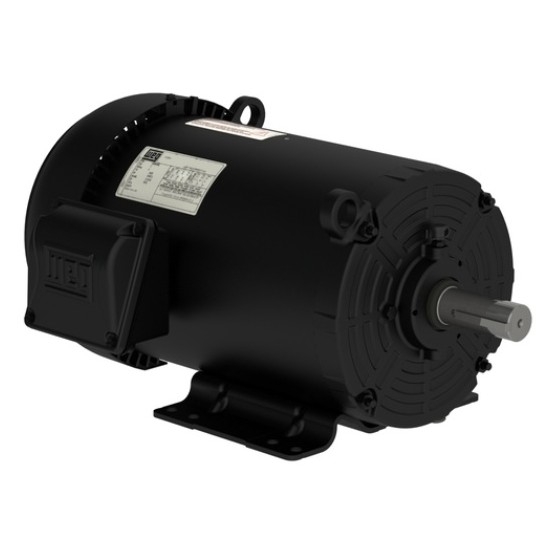

Rolled Steel NEMA Premium Efficiency 15 HP 2P 254/6T 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted

Name: 15 HP 3600 2X4V TEFC 254/6T NP W01
Brand: WEG
SKU: HT015402NPW01
Price: 1365.00 CAD
Availability: InStock

Part Number: HT015402NPW01

List Price: $1,365.00

Quantity:

Request Different Configuration

Inventory: Low Inventory

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

HP	15 HP
RPM	3600 rpm

Voltage	230/460//190-220/380-415 V
Enclosure	IC411 - TEFC

Frame	254/6T
Voltage	230/460 V
Number of Poles	2
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.8718 sq.ft.lb
Breakdown Torque	300 %
No Load Current	13.0/6.50 A
L. R. Amperes	237/118 A
Slip	2.08 %
Mounting	F-1
Frequency	60 Hz
Frame Material	Rolled Steel
Main Terminal Box Hole	1.732"
Drain	Rubber, automatic
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Steel
Fan Material	Plastic
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6309 Z C3
NDE Bearing Seal	Without Bearing Seal
