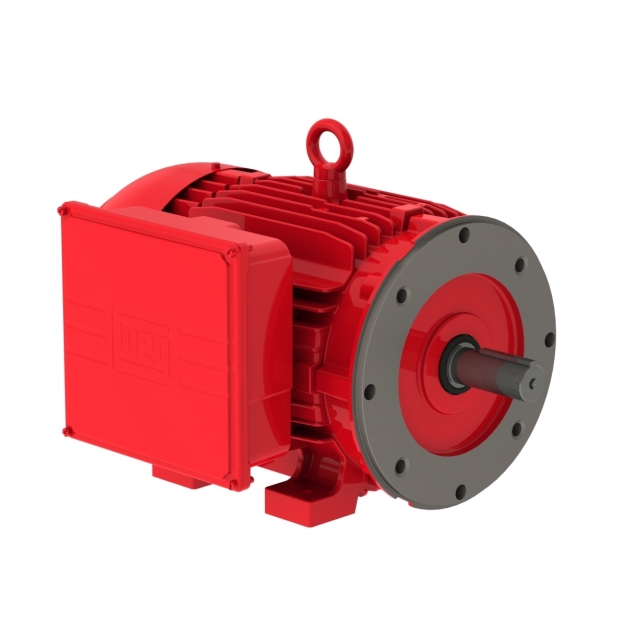

W22 3 HP 4P 182/4TC 1Ph 230 V 60 Hz IC411 - TEFC - Foot-mounted

Name: 3 HP 1800 230 TEFC 182/4TC FARM DTY W22
Brand: WEG
SKU: FD003104W22C
Price: 981.00 CAD
Availability: InStock

Part Number: FD003104W22C

List Price: $981.00

Quantity:

Request Different Configuration

Inventory: In stock

HP	3 HP
RPM	1800 rpm

Voltage	230 V
Enclosure	IC411 - TEFC

Flange	C
Output	3 HP (2.2 kW)
Terminal Box	Left position
Ambient Temperature	-20°C to +40°C
Duty Cycle	Cont.(S1)
Service Factor	1.15
Moment of Inertia (J)	0.3735 sq.ft.lb
Breakdown Torque	270 %
No Load Current	6.70 A
L. R. Amperes	106 A
Slip	3.06 %
Mounting	F-1
Frequency	60 Hz
Frame Material	Cast Iron
Main Terminal Box Hole	NPT 1"
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Grounding Lugs	Single
Tropicalized Painting	Without
Bearing Cap	No-Without Bearing Cap
Overload Protector (Phenolic)	Manual
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6207 2RS
NDE Bearing Seal	V'Ring
