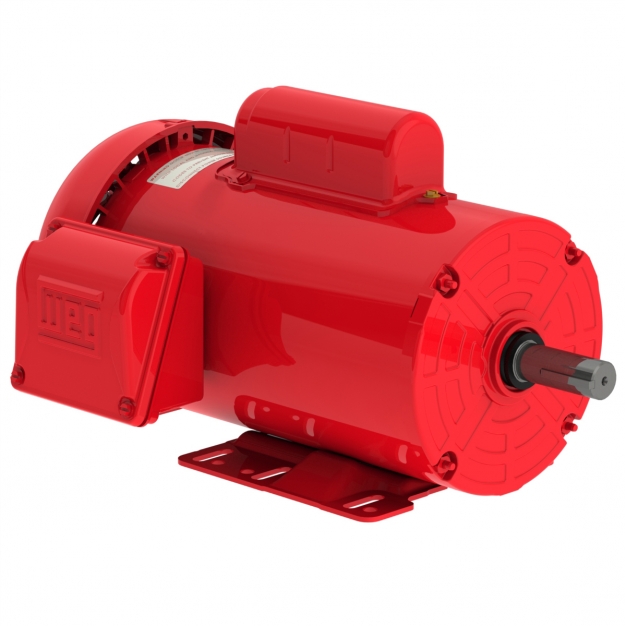

ELECTRIC MOTOR SINGLE PHASE 0.75 HP 04 56 115/230 WCF2 60Hz F-1/B3R(D) IP55 DIMENSIONS ACC. CONFIGURATION FARM DUTY IHP

Name: .75HP 4P 1X2 TEFC 56 FARM DUTY W01
Brand: WEG
SKU: FD.75104W01
Price: 748.00 CAD
Availability: InStock

Part Number: FD.75104W01

List Price: $748.00

Quantity:

Request Different Configuration

Inventory: In stock

Voltage	115/230V
RPM	1800 rpm

HP	0.75 HP
Enclosure	IC411 - TEFC

Flange	Without
Output	0.75 HP (0.55 kW)
Terminal Box	Left position
Application	ROLLED STEEL
Power	0.75 HP
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.0778 sq.ft.lb
Breakdown Torque	270 %
No Load Current	8.00/4.00 A
L. R. Amperes	67.8/33.9 A
Slip	3.06 %
Mounting	F-1/B3R(D)
Frequency	60 Hz
Frame Material	Rolled Steel
Main Terminal Box Hole	NPT 1/2"
Drain	Rubber, automatic
Painting	RAL 3002 207N (ISO 12944 - C2)
Fan Cover Material	Industrial polymer
Fan Material	Plastic
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Manual
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6203 2RS
NDE Bearing Seal	Without Bearing Seal
