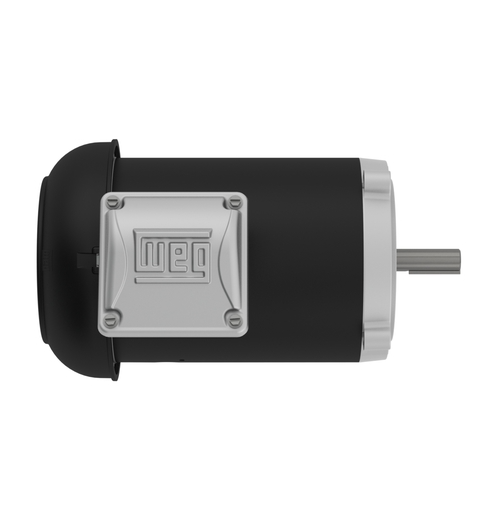

ELECTRIC MOTOR THREE PHASE ROTOR SQUIRREL CAGE 2 HP 04 56C 208-230/460//190-220/380-415 WCF2 60Hz F-1/B14R(D) IP55 PREMIUM EFFICIENCY ROLLED STEE

Name: 2 HP 4P 2X4V TEFC 56HC W01 DOE FTLS
Brand: WEG
SKU: FC002404SW01DOE
Price: 565.00 CAD
Availability: InStock

Part Number: FC002404SW01DOE

List Price: $565.00

Quantity:

Request Different Configuration

Inventory: In stock

HP	2 HP
RPM	1800 rpm

Voltage	208-230/460//190-220/380-415V
Enclosure	IC411 - TEFC

Flange	C
Output	2 HP (1.5 kW)
Terminal Box	Left position
Application	ROLLED STEEL
Power	2 HP
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.1296 sq.ft.lb
Breakdown Torque	300 %
No Load Current	2.80/1.40 A
L. R. Amperes	44.6/22.3 A
Slip	3.06 %
Mounting	F-1/B14R(D)
Frequency	60 Hz
Frame Material	Rolled Steel
Main Terminal Box Hole	0.881"
Drain	Rubber, automatic
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Industrial polymer
Fan Material	Plastic
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6204 ZZ
NDE Bearing Seal	Without Bearing Seal
