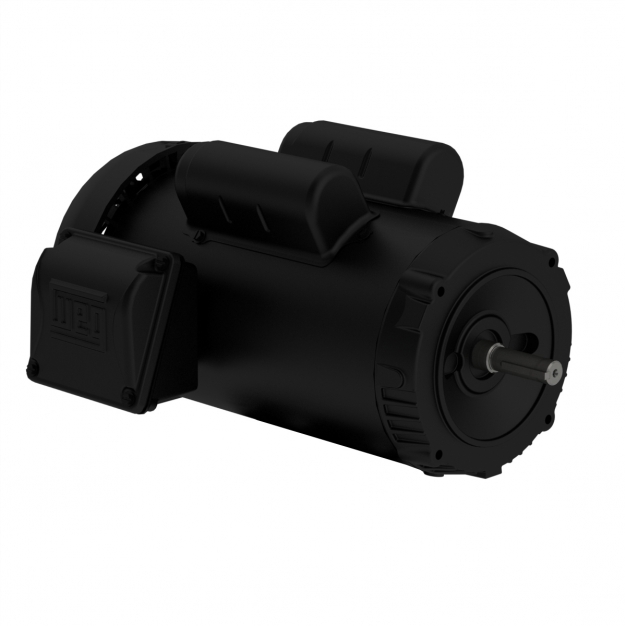

Rolled Steel 1 HP 2P 56C 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Footless

Name: 1HP 2P 1X2V TEFC 56C W01 DOE FTLS
Brand: WEG
SKU: FC000102SW01DOE
Price: 405.00 CAD
Availability: InStock

Part Number: FC000102SW01DOE

List Price: $405.00

Quantity:

Request Different Configuration

Inventory: Call for stock

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

HP	1 HP
RPM	3600 rpm

Voltage	115/208-230 V
Enclosure	IC411 - TEFC

Frame	56C
Voltage	115/208-230 V
Number of Poles	2
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.0589 sq.ft.lb
Breakdown Torque	290 %
No Load Current	2.00/0.862-1.00 A
L. R. Amperes	72.5/38.7-36.3 A
Slip	2.64 %
Mounting	F-1
Frequency	60 Hz
Frame Material	Rolled Steel
Main Terminal Box Hole	0.881"
Drain	Rubber, automatic
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Industrial polymer
Fan Material	Plastic
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6204 ZZ
NDE Bearing Seal	Without Bearing Seal
