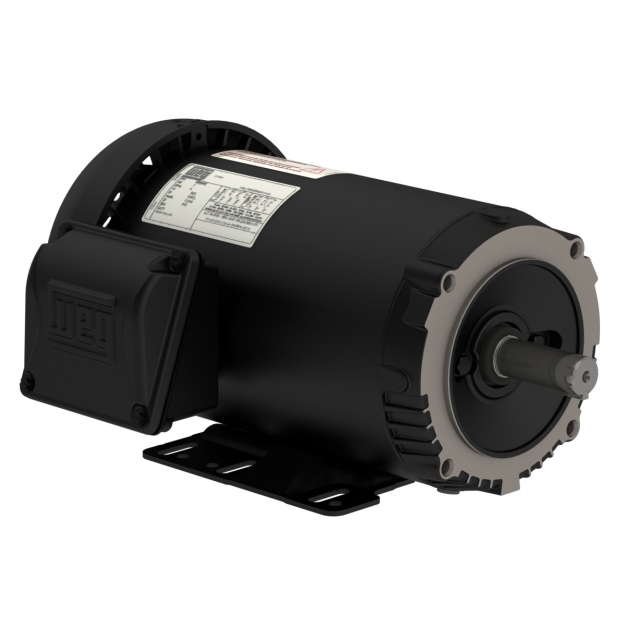

ELECTRIC MOTOR THREE PHASE 0.5 HP 04 W56C 575 C/W 3 leads WCF2 60Hz F-1/B34R(D) IP55 DIMENSIONS ACC. CONFIGURATION PREMIUM EFFICIENCY ROLLED STEE

Name: .50HP 1800 575 TEFC W56C 3PH W01 DOE
Brand: WEG
SKU: FC.50504W01DOE
Price: 768.00 CAD
Availability: InStock

Part Number: FC.50504W01DOE

List Price: $768.00

Quantity:

Request Different Configuration

Inventory: In stock

HP	0.5 HP
RPM	1800 rpm

Voltage	575V
Enclosure	IC411 - TEFC

Frame	W56C
Voltage	575 V
Number of Poles	4
Class	MOTOR ROLLED STEEL
Detail	IE2
Polarity	04
Ambient Temperature	-20°C to +40°C
Duty Cycle	Cont.(S1)
Service Factor	1.15
Moment of Inertia (J)	0.0520 sq.ft.lb
Breakdown Torque	310 %
No Load Current	0.397 A
L. R. Amperes	3.98 A
Slip	3.89 %
Mounting	F-1/B34R(D)
Frequency	60 Hz
Frame Material	Rolled Steel
Main Terminal Box Hole	0.881"
Drain	Rubber, automatic
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Industrial polymer
Fan Material	Plastic
Balancing Method	Not Balanced
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6203 ZZ
NDE Bearing Seal	Without Bearing Seal
