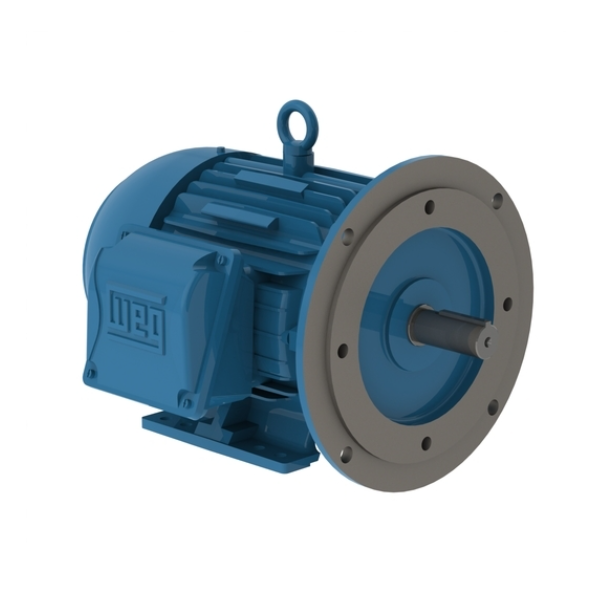

ELECTRIC MOTOR THREE PHASE 3 HP 02 182/4TD 575 C/W 6 leads 60Hz B35R(D) IP55 W22 NEMA PREMIUM EFFICIENCY WFF2

Name: 3 HP 3600 575 TEFC 182/4TD NP W22
Brand: WEG
SKU: DT003502NPW22
Price: 723.00 CAD
Availability: InStock

Part Number: DT003502NPW22

List Price: $723.00

Quantity:

Request Different Configuration

Inventory: Low Inventory

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

HP	3 HP
RPM	3600 rpm

Voltage	575V
Enclosure	IC411 - TEFC

Flange	Without
Number of Poles	2
Class	ELECTRIC MOTOR
Detail	NEMA PREMIUM EFFICIENCY
Polarity	02
Ambient Temperature	-20°C to +40°C
Duty Cycle	Cont.(S1)
Service Factor	1.25
Design	B
Locked Rotor Time	73s (cold) 41s (hot)
Rated Torque	4.49 ft.lb
LRC	8.6x(Code K)
Rated Current	2.90 A
Rated Speed	3510 rpm
Degree of Protection	IP55
Standard	NEMA MG-1
Impregnation Method	Dip and Bake Polyester
Terminal Block	Without
Drain	Rubber, automatic
Painting	RAL 5009 207A (ISO 12944 - C3)
Fan Cover Material	Steel
Fan Material	Plastic
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6207 ZZ
NDE Bearing Seal	V'Ring
