ELECTRIC MOTOR THREE PHASE 3 HP 02 143/5T 208-230/460//190-220/380-415 WCA2 60Hz F-1/B3R(D) IP21 DIMENSIONS ACC. CONFIGURATION NEMAPREMIUM EFFIC

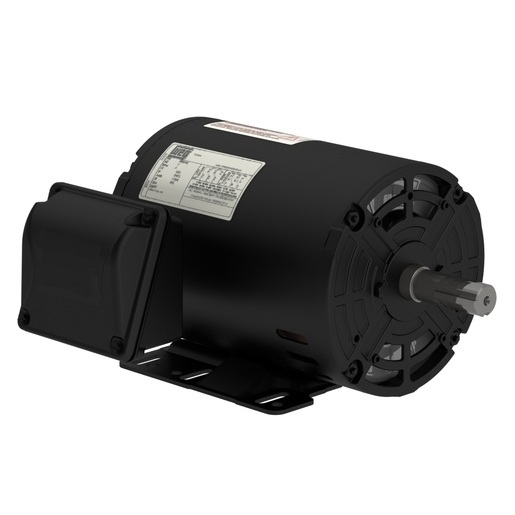

Name: 3 HP 3600 2X4 ODP 143/5T NP W01
Brand: WEG
SKU: DP003402NPW01
Price: 942.00 CAD
Availability: InStock

Part Number: DP003402NPW01

List Price: $942.00

Quantity:

Request Different Configuration

In stock

HP	3 HP
Enclosure	IC01 - ODP

Frame	143/5T
Voltage	208-230/460V
Number of Poles	2
Class	MOTOR ROLLED STEEL
Detail	NEMA PREMIUM EFFICIENCY
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.1279 sq.ft.lb
Breakdown Torque	300 %
No Load Current	2.60/1.30 A
L. R. Amperes	57.4/28.7 A
Slip	3.33 %
Mounting	F-1/B3R(D)
Standard	NEMA
Impregnation Method	Dip and Bake Polyester
Terminal Block	Without
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Without Fan Cover
Fan Material	Without fan
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6205 ZZ
NDE Bearing Seal	Without Bearing Seal
