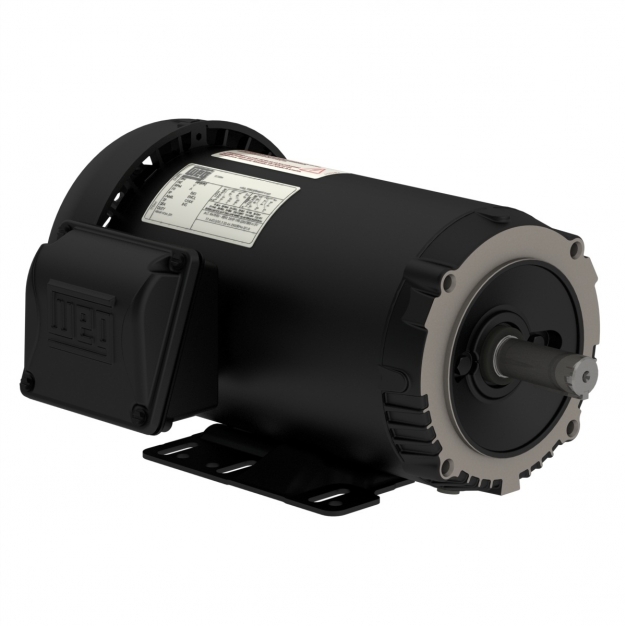

ELECTRIC MOTOR THREE PHASE ROTOR SQUIRREL CAGE 3 HP 02 143/5TC 208-230/460//190-220/380-415 WCF2 60Hz F-1/B34R(D) IP55 NEMA PREMIUMEFFICIENCY RO

Name: 3 HP 3600 2X4 TEFC 143/5TC NP W01
Brand: WEG
SKU: CT003402NPW01145T
Price: 543.00 CAD
Availability: InStock

Part Number: CT003402NPW01145T

List Price: $543.00

Quantity:

Request Different Configuration

Inventory: Low Inventory

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

HP	3 HP
RPM	3600 rpm

Voltage	208-230/460//190-220/380-415V
Enclosure	IC411 - TEFC

Flange	C
Output	3 HP (2.2 kW)
Terminal Box	Left position
Application	ROLLED STEEL
Power	3 HP
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.1663 sq.ft.lb
Breakdown Torque	380 %
No Load Current	2.56/1.28 A
L. R. Amperes	66.7/33.3 A
Slip	2.78 %
Mounting	F-1/B34R(D)
Frequency	60 Hz
Frame Material	Rolled Steel
Main Terminal Box Hole	1.118"
Drain	Rubber, automatic
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Industrial polymer
Fan Material	Plastic
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6205 ZZ
NDE Bearing Seal	Without Bearing Seal
