Founded in 1961 in the state of Santa Catarina in Brazil, WEG is acknowledged today as one of the largest manufacturers of electric motors in the entire world.
V.J. Pamensky Canada Inc. is one of the biggest names in the manufacturing industry due to its status as a massive importer of electric motors in Canada.
*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

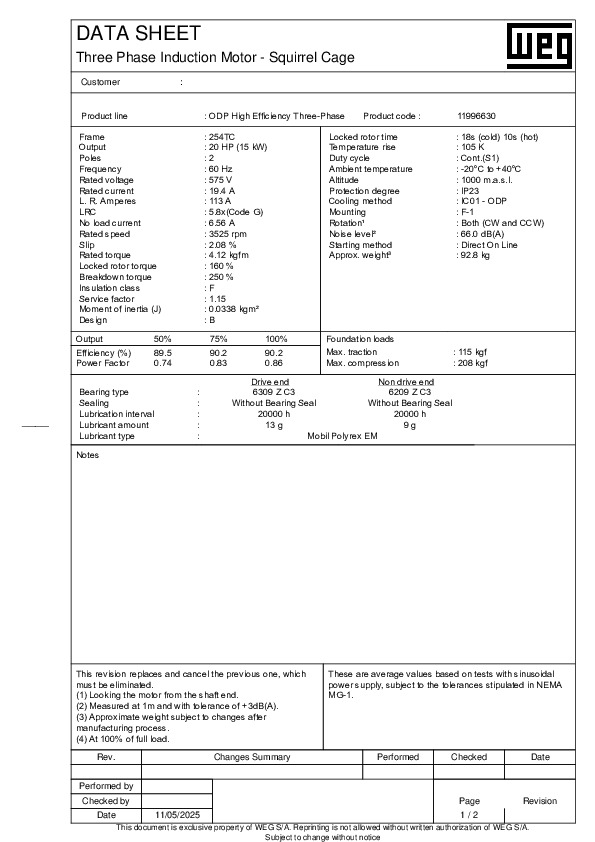

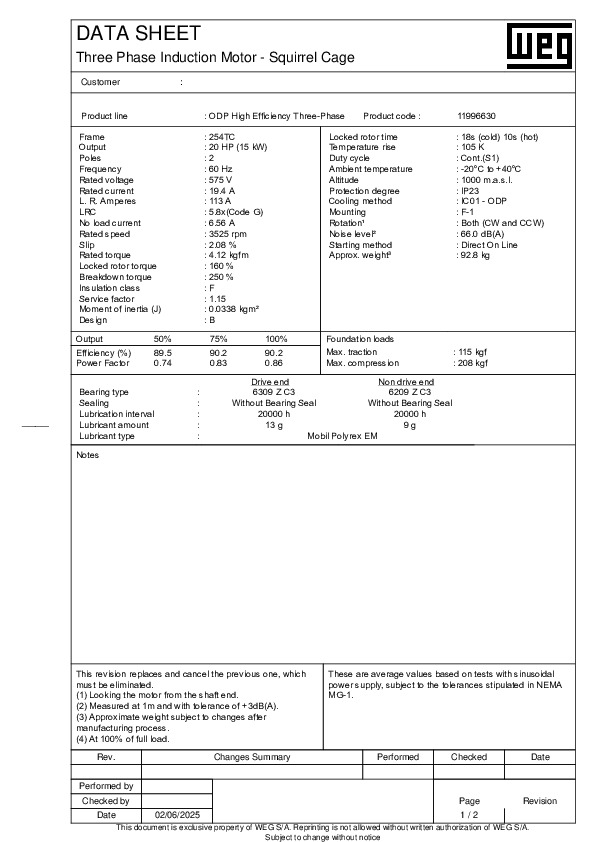

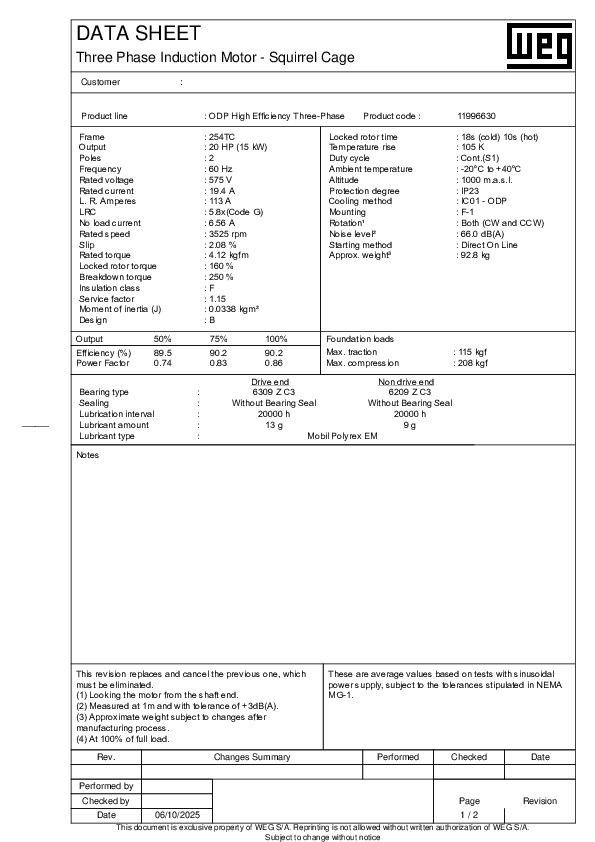

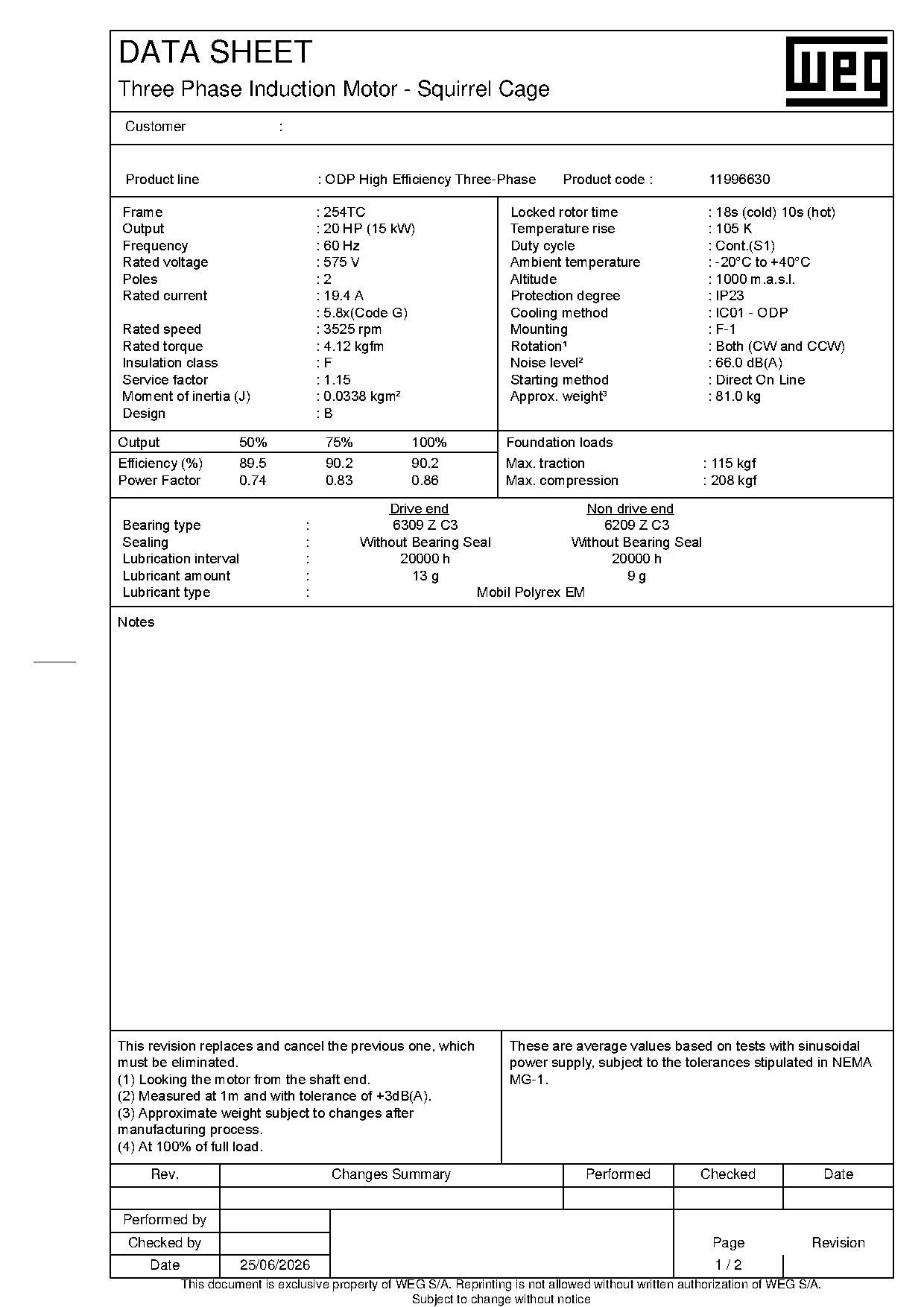

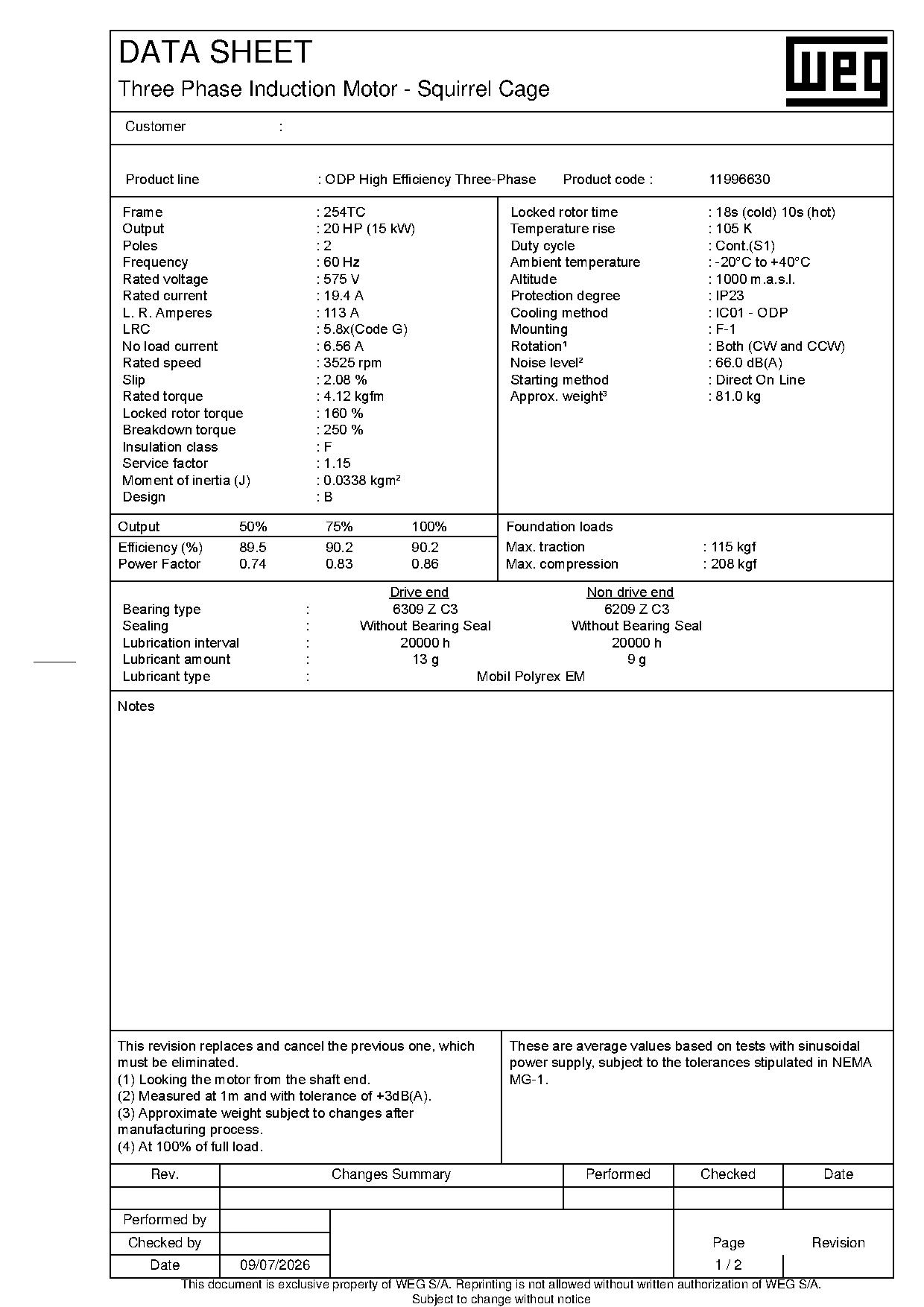

RATED VOLTAGE: 575 V
Enclosure: IC01 - ODP
Output Rating: 20 HP
Number of Poles: 2
TERMINAL BOX: Left position
FLANGE: C
Output: 20 HP (15 kW)
FRAME: 254TC
ALTITUDE: 1000 m.a.s.l.
AMBIENT TEMPERATURE: -20°C to +40°C
STARTING METHOD: Direct On Line
DUTY CYCLE: Cont.(S1)
TEMPERATURE RISE: 105 K
SERVICE FACTOR: 1.15
INSULATION CLASS: F
DESIGN: B
MOMENT OF INERTIA (J): 0.8028 sq.ft.lb
LOCKED ROTOR TIME: 18s (cold) 10s (hot)
BREAKDOWN TORQUE: 250 %
RATED TORQUE: 29.8 ft.lb
NO LOAD CURRENT: 6.56 A
LRC: 5.8x(Code G)
L. R. AMPERES: 113 A
RATED CURRENT: 19.4 A
SLIP: 2.08 %
RATED SPEED: 3525 rpm
MOUNTING: F-1
DEGREE OF PROTECTION: IP23
FREQUENCY: 60 Hz
SYNCHRONOUS SPEED: 3600 rpm
STANDARD: 00006
FRAME MATERIAL: Cast Iron
IMPREGNATION METHOD: Dip and Bake Polyester
MAIN TERMINAL BOX HOLE: NPT 1 1/2"
TERMINAL BLOCK: Without
SHAFT LOCKING DEVICE: Without
SHAFT MATERIAL: SAE 1040/45 Carbon Steel
PAINTING: RAL 5009 203A (ISO 12944 - C3)
GROUNDING LUGS: Single
FAN COVER MATERIAL: Without Fan Cover
TROPICALIZED PAINTING: Without
FAN MATERIAL: Without fan
BEARING CAP: No-Without Bearing Cap
BALANCING METHOD: 1/2 Key
DRIP COVER: With
OVERLOAD PROTECTOR (PHENOLIC): Without overload protector
NDE BEARING: 6209 Z C3
GREASE TYPE: Mobil Polyrex EM
LOCKED ROTOR TORQUE: 160 %
ROTATION: Both (CW and CCW)
NOISE LEVEL: 66.0 dB(A)
BEARING TYPE: 6309 Z C3
SEALING: Without Bearing Seal
NDE BEARING SEAL: Without Bearing Seal
