Founded in 1961 in the state of Santa Catarina in Brazil, WEG is acknowledged today as one of the largest manufacturers of electric motors in the entire world.
V.J. Pamensky Canada Inc. is one of the biggest names in the manufacturing industry due to its status as a massive importer of electric motors in Canada.
*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

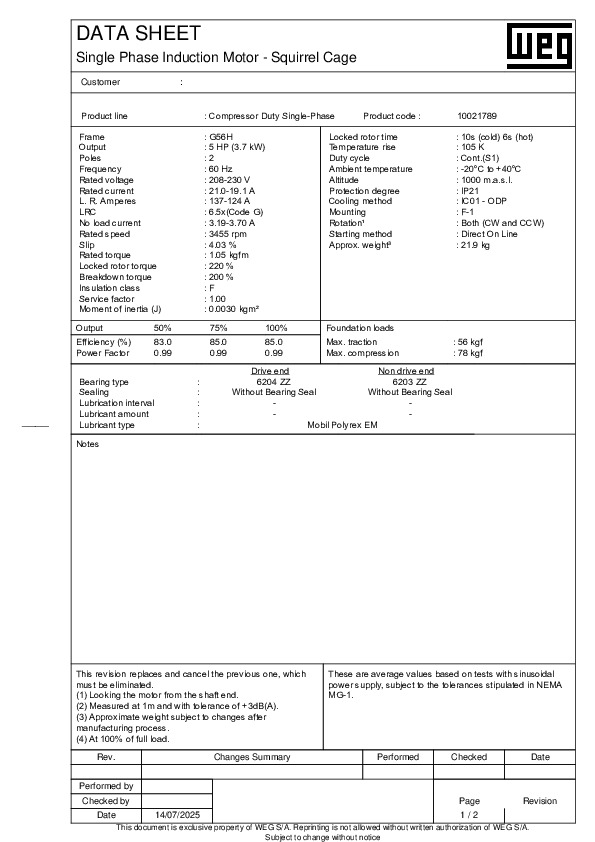

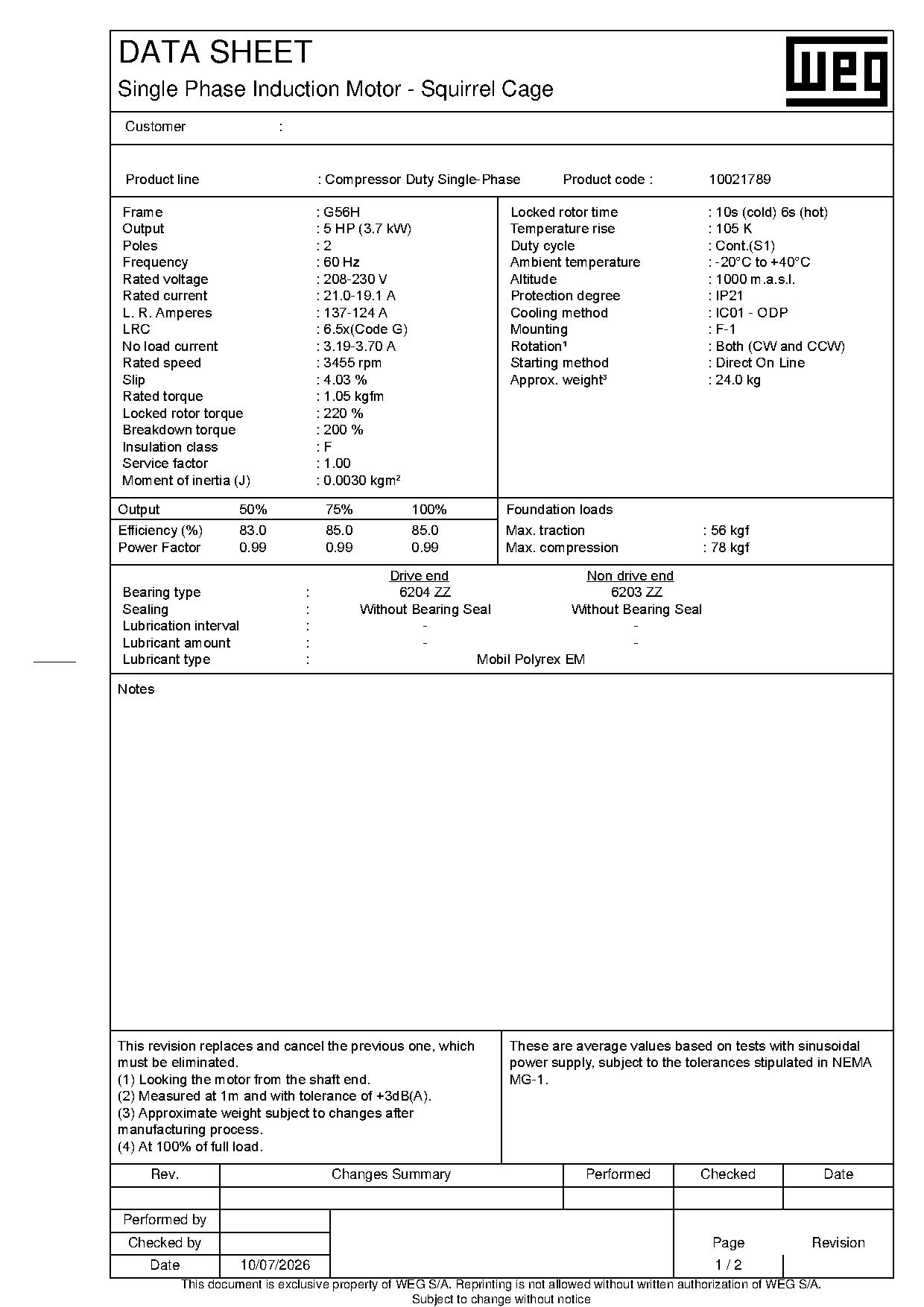

RATED VOLTAGE: 208-230 V
Enclosure: IC01 - ODP
Output Rating: 5 HP
Number of Poles: 2
TERMINAL BOX: Without Terminal Box
FLANGE: Without
Output: 5 HP (3.7 kW)
FRAME: G56H
ALTITUDE: 1000 m.a.s.l.
AMBIENT TEMPERATURE: -20°C to +40°C
STARTING METHOD: Direct On Line
DUTY CYCLE: Cont.(S1)
TEMPERATURE RISE: 105 K
SERVICE FACTOR: 1.00 (1.00 @ 208V)
INSULATION CLASS: F
MOMENT OF INERTIA (J): 0.0721 sq.ft.lb
LOCKED ROTOR TIME: 10s (cold) 6s (hot)
BREAKDOWN TORQUE: 200 %
RATED TORQUE: 7.60 ft.lb
NO LOAD CURRENT: 3.19-3.70 A
LRC: 6.5x(Code G)
L. R. AMPERES: 137-124 A
RATED CURRENT: 21.0-19.1 A
SLIP: 4.03 %
RATED SPEED: 3455 rpm
MOUNTING: F-1
DEGREE OF PROTECTION: IP21
FREQUENCY: 60 Hz
SYNCHRONOUS SPEED: 3600 rpm
STANDARD: NEMA MG-1
FRAME MATERIAL: Rolled Steel
IMPREGNATION METHOD: Dip and Bake Polyester
SHAFT MATERIAL: SAE 1040/45 Carbon Steel
PAINTING: Munsell N 1 - Matte 207N (ISO 12944 - C2)
GROUNDING LUGS: Single
TROPICALIZED PAINTING: Without
FAN MATERIAL: Plastic
BEARING CAP: No-Without Bearing Cap
BALANCING METHOD: 1/2 Key
DRIP COVER: Without
OVERLOAD PROTECTOR (PHENOLIC): Manual
NDE BEARING: 6203 ZZ
GREASE TYPE: Mobil Polyrex EM
LOCKED ROTOR TORQUE: 220 %
ROTATION: Both (CW and CCW)
BEARING TYPE: 6204 ZZ
SEALING: Without Bearing Seal
NDE BEARING SEAL: Without Bearing Seal
