Variable frequency drives are among the most effective tools in industrial automation yet one of the most commonly misapplied during integration and commissioning.
Across Canadian manufacturing, processing and material handling facilities, VFD systems are specified, installed and commissioned every day. Many operate reliably for years. Others develop nuisance trips, overheating issues, communication faults or premature motor failures shortly after startup.
Most of these problems originate long before commissioning begins. A motor specification that missed inverter-duty requirements, a cable run that exceeded design assumptions or a grounding scheme that looked acceptable on paper can create reliability problems that only appear once the system is under load.
This guide explains the most common VFD integration and commissioning problems industrial project managers encounter and how proper specification, installation and startup practices reduce long-term reliability risk.
Most VFD failures trace back to the specification stage, not the startup stage. The drive is often selected based on horsepower and voltage alone, without accounting for the load profile, duty cycle, ambient conditions or the specific motor it's paired with.
In Canada's industrial sector, motors and drives are frequently specified by different teams at different project phases. The mechanical engineer sizes the motor. The electrical engineer selects the drive. The controls integrator programs the parameters. No single person owns the full system. That fragmentation is where problems are born.
Key specification gaps that create downstream problems:
Getting these decisions right at the front end is the single highest-leverage point in any VFD project. It's also where working with an experienced electric motor supplier in Canada, one who understands both the drive and the motor side, pays the most immediate return.
Many VFD integration failures are not caused by a single technical mistake. They develop because responsibilities are divided across multiple teams during specification, installation, and commissioning.
Mechanical, electrical and controls teams often work independently, creating gaps around motor compatibility, grounding strategy, cable installation, and parameter ownership. By the time startup begins, those decisions are difficult and expensive to reverse.
For industrial project managers, early coordination between the motor supplier, controls integrator, and electrical contractor is one of the most effective ways to reduce commissioning delays and post-startup reliability issues.
Yes. And they're also the most preventable. Out-of-the-box drive parameters are factory defaults, not application settings. Running a loaded conveyor or a centrifugal pump on default acceleration ramps, default carrier frequency and default motor nameplate data is a reliable path to nuisance trips and premature component wear.
The parameters that cause the most problems in practice:
Acceleration and deceleration ramps: Set too aggressively, they cause overcurrent faults on high-inertia loads. Set too conservatively on a pump system, they can cause water hammer or pressure transients that stress piping.
Carrier frequency: Higher carrier frequencies reduce audible motor noise but increase capacitive leakage current, bearing current risk and drive heat generation. The default setting on most drives (typically 4–8 kHz) is a compromise, not necessarily right for your application.
Motor nameplate data entry: Full-load amps, rated speed, power factor and efficiency class all need to be entered accurately. Errors here throw off the drive's internal motor model and affect torque regulation, thermal protection and auto-tune results.
Slip compensation: Incorrectly configured slip compensation causes speed regulation errors under varying load, a significant issue on conveyors and process lines where consistent throughput matters.
Thermal protection settings: Electronic thermal overload in the drive must be configured to match the motor's actual thermal characteristics. Relying on drive defaults for motor protection is not a substitute for proper setup.
Poor grounding is one of the most underestimated reliability risks in VFD installations because its symptoms often appear as unrelated system problems. It's also one of the hardest to diagnose after the fact, its effects (nuisance trips, EMI interference, communication errors and bearing damage) look like unrelated problems that can build over days or even weeks after commissioning.
VFDs generate high-frequency switching noise as a byproduct of their PWM output. Without a low-impedance ground path back to the drive, that noise finds other paths: signal cables, communication networks and motor bearings.
The grounding issues seen most often in industrial VFD installations:
A proper VFD grounding scheme treats the drive, motor and cable shield as a system. The shield on a shielded motor cable needs to be terminated at both ends, at the drive and at the motor, with 360-degree terminations, not pigtails.
Cable length is one of the most frequently overlooked VFD application parameters. The fast voltage rise times (dV/dt) produced by modern IGBT-based drives create voltage reflection effects on long cable runs and the reflected voltage at the motor terminals can reach twice the drive's DC bus voltage.
For a 600V drive, that means motor terminal voltages can spike to 1,200V or higher on long cable runs. Standard motors are not rated for this. The result is accelerated insulation degradation and, eventually, winding failure.
As a general guide for cable length risk and mitigation:
Beyond voltage reflection, long cable runs increase capacitive charging current, which can cause nuisance overcurrent trips and reduce the effective current available to the motor. Specify shielded cable, add an output reactor or dV/dt filter at the drive output and confirm the motor is rated for inverter duty. The cost of those components at specification time is a fraction of the cost of a winding failure in the field.
Nuisance trips are the most common complaint after a VFD system goes live and the most misdiagnosed. The drive faults. Someone resets it. It runs for a few hours, then faults again. The instinct is to blame the drive. The cause is almost always something else.
Overcurrent faults: Usually caused by acceleration ramps set too fast for the load inertia, a motor undersized for the actual load or a cable run adding capacitive charging current on top of motor current.
Overvoltage faults: Happen during deceleration when the motor acts as a generator and pushes energy back into the DC bus. Fix options include a longer decel ramp, a braking resistor or a regenerative drive, depending on the application.
Undervoltage faults: Often traced to voltage sags on the supply side, common in Canadian facilities with large motor starters sharing the same distribution panel as the VFD.
Ground fault trips: Frequently caused by deteriorated motor insulation, moisture ingress or capacitive leakage current from long cable runs crossing the drive's ground fault threshold.
The diagnostic process matters as much as the fix. Fault logs with timestamps tell you when trips happen and under what operating conditions. That data points directly to the root cause, if you know how to read it.
These two failure modes are underappreciated in the field and both are directly caused by VFD operation. Neither announces itself obviously. Both shorten motor life significantly if not addressed.
Harmonics: VFDs draw non-sinusoidal current from the supply, generating harmonic distortion that flows back into the electrical distribution system. In Canadian industrial facilities where multiple drives often share common bus infrastructure, harmonic distortion accumulates. Effects include overheating of transformers and neutral conductors, interference with sensitive instrumentation and additional heating in motor windings, particularly in motors not rated for inverter duty.
Total harmonic distortion (THD) above 5% at the point of common coupling typically requires mitigation. Options include line reactors as the lowest-cost first step, passive harmonic filters or active front-end drives for higher-demand applications.
Bearing currents: PWM switching creates common-mode voltages on the motor shaft. When shaft voltage builds up and discharges through the motor bearings, it creates electrical discharge machining (EDM), microscopic pitting on bearing races and rolling elements. The bearing looks fine on inspection, then fails prematurely.
Bearing current damage is most common in motors above 30 kW on long cable runs with high carrier frequencies. Mitigation includes insulated bearings on the non-drive end, shaft grounding rings or a combination of both. WEG motors in the higher frame sizes are available with bearing insulation as a factory option, worth specifying at the outset rather than retrofitting after a bearing failure. These bearing current and insulation-related failures are often misunderstood during troubleshooting because the motor may continue operating for long periods before the accumulated electrical damage becomes visible.
Not every motor is suitable for VFD operation and not every motor that can technically run on a VFD is optimized for long-term reliability under variable-speed conditions.
This distinction matters most on retrofit projects, where an existing motor is connected to a drive without fully evaluating insulation condition, cooling capability, bearing design or cable installation requirements.
The key compatibility factors:
For new installations, specifying inverter-duty electric motors matched to the drive from the outset eliminates most of these risks. For retrofits, a motor audit before drive installation is time well spent.
Pumps are the most common VFD application in Canadian industrial facilities and they produce a predictable set of integration problems when application specifics aren't accounted for.
Minimum speed settings: Centrifugal pumps have a minimum recommended operating speed, typically 20–30 Hz for most designs. Running below this threshold reduces cooling flow through the pump, causes bearing and seal issues and can lead to cavitation. Drives on pump applications need minimum speed parameters set and enforced.
Sleep/wake functions: On variable-demand systems, improperly configured sleep functions can cause pressure transients when the pump restarts. Wake thresholds set too high also result in system pressure dropping further than necessary before the drive comes back online.
Water hammer: Fast deceleration ramps on pump systems driving long pipe runs create pressure waves that stress piping, fittings and valves. Decel ramps on pump applications should be set conservatively and verified under actual operating conditions.
Fan applications: A fan's power demand increases with the cube of speed, doubling fan speed increases power demand eightfold. Drives on fan applications need to be sized for the full-speed power requirement, not just the reduced-speed operating point. Flying start capability is also important: fans often coast slowly to a stop and a drive that starts into a spinning fan without matching speed and direction first can trip on overcurrent.
Conveyor applications: Conveyors typically have high starting torque requirements and need precise speed regulation under varying load. The key issues are torque boost settings that are too aggressive, causing motor overheating at low speed on lightly loaded conveyors and speed regulation errors under load changes when slip compensation isn't properly tuned for the actual load profile.
Multi-motor conveyors driven by a single VFD present additional complexity. Load sharing between motors is difficult to control without individual motor protection and a fault in one motor affects the entire conveyor line.
Heavy-duty applications, crushers, mills, compressors, hoists, push VFD systems harder than standard applications in every dimension. Higher torque demands, shock loads, higher duty cycles and less tolerance for unplanned downtime all require a more deliberate approach to drive selection and commissioning.
The most common gaps on heavy-duty applications:

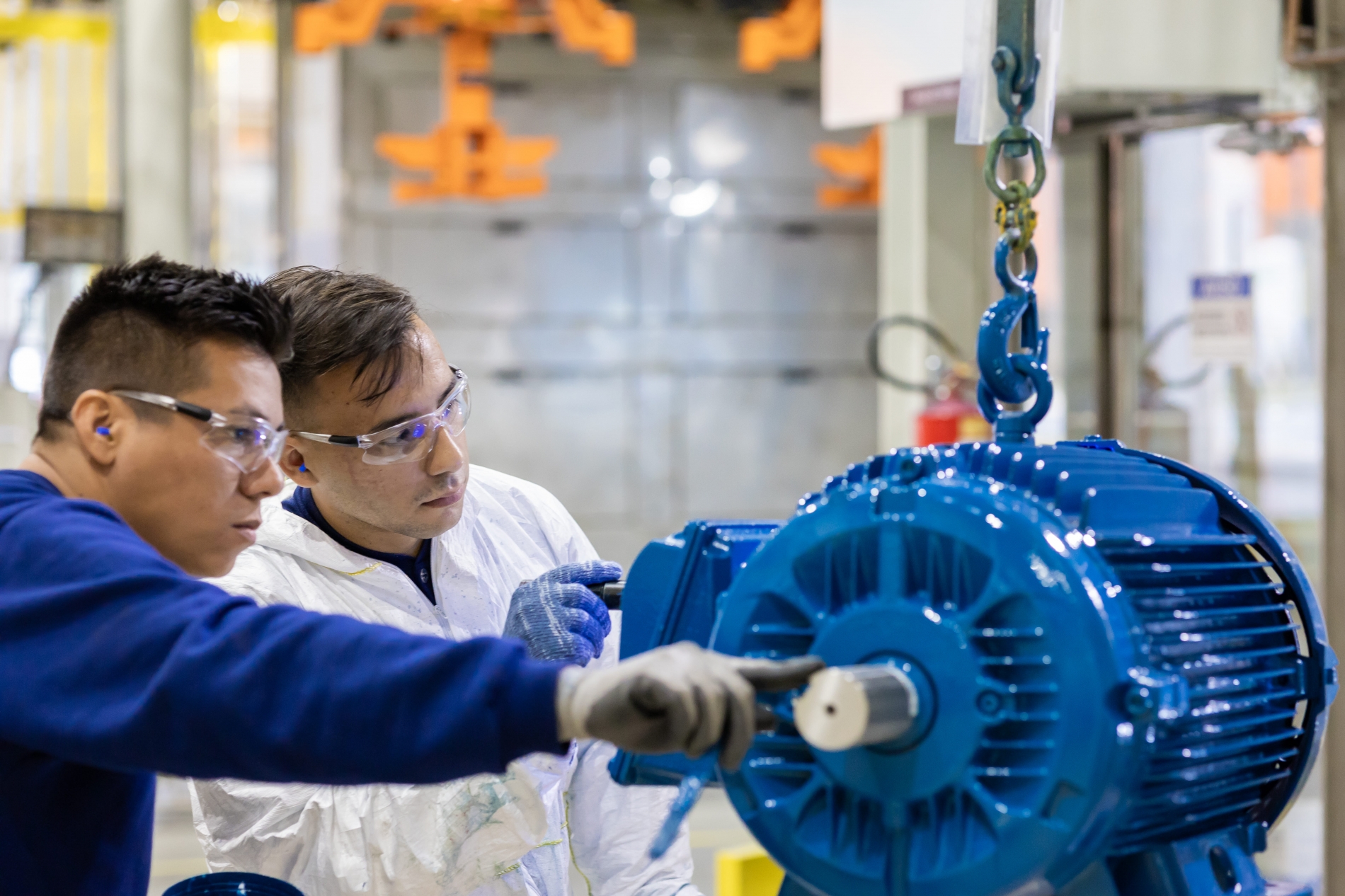

A structured commissioning process helps prevent many of the startup and reliability problems that appear later in VFD-driven systems. These are the checks that matter most:
Electrical verification:
Parameter verification:
First-run procedure:
Not every VFD project needs outside support. But there are specific situations where involving VJ Pamensky (WEG Canada) early prevents problems that are expensive to fix later.
At the specification stage: When the application involves unusual load characteristics, high-inertia equipment, hazardous locations or critical uptime requirements, drive selection is not a catalogue exercise. The interaction between the drive, the motor, the load and the electrical infrastructure needs to be evaluated together, before the purchase order, not after startup.
During parameter setup: Drive commissioning on complex applications, closed-loop control, multi-motor systems, coordinated motion, benefits from application experience. Factory defaults get you running. Properly configured parameters keep you running.
When a system isn't performing as expected: Nuisance trips, speed instability, motor overheating, unexplained faults, these issues are diagnosable, but the process requires systematically ruling out causes. An experienced supplier who knows both the drive and the motor side can shorten that process significantly.

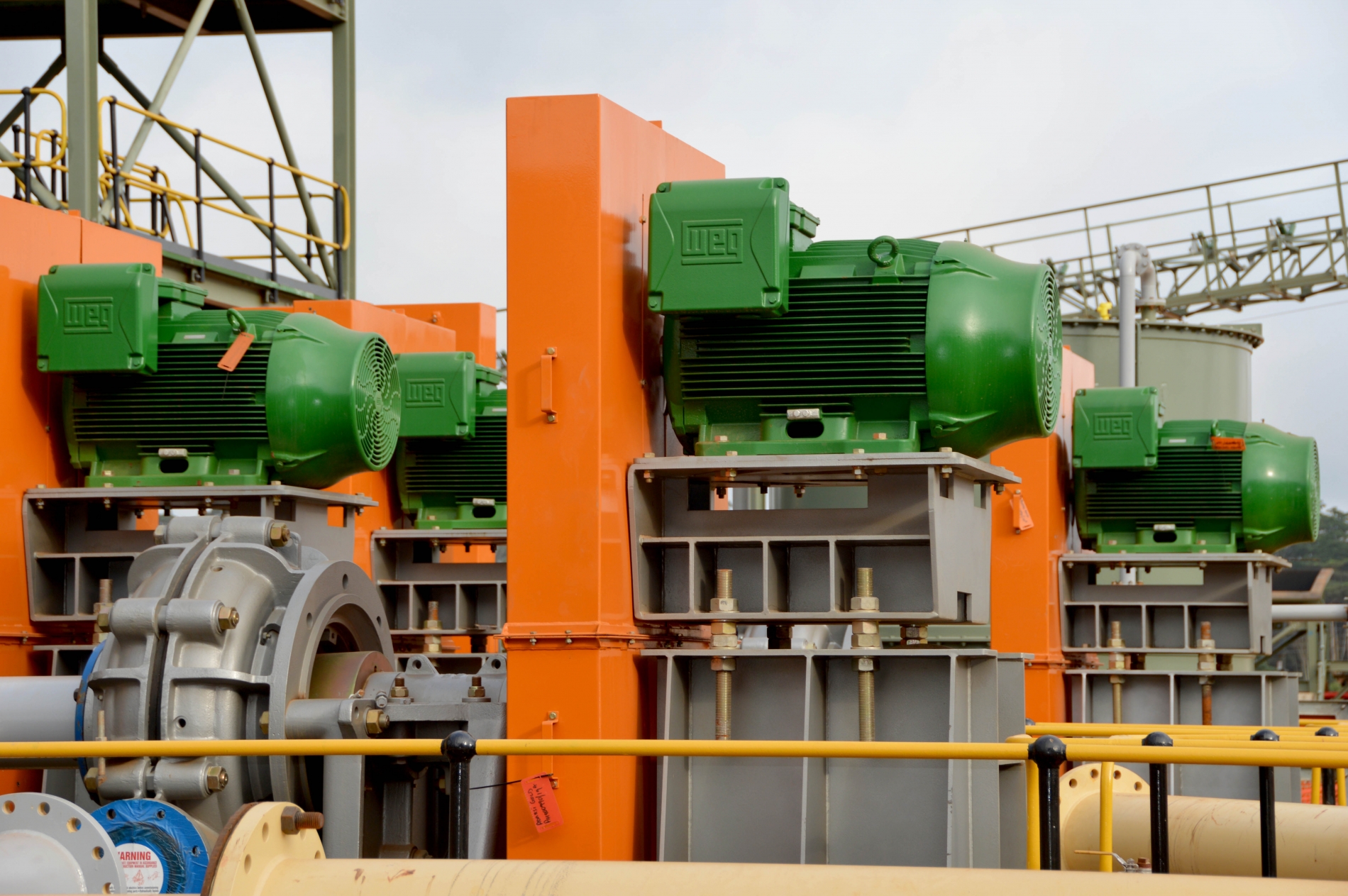

When specifying WEG motors for VFD applications: WEG's motor line includes inverter-duty and severe-duty options purpose-built for variable frequency operation. Matching the right motor to the drive and the application, including frame size, insulation class, bearing configuration and enclosure type, is where VJ Pamensky adds direct value.
VFD integration problems are rarely random. Most follow predictable patterns: specification gaps, grounding issues, parameter errors, cable installation problems or motor-drive compatibility mismatches that only become visible once the system is operating under real load conditions.
Project managers who treat the motor, drive and installation environment as one integrated system can reduce startup issues, commissioning delays and long-term reliability problems.
Pamensky (WEG Canada) supports Canadian industrial projects with motor and drive selection guidance, inverter-duty motor support, commissioning assistance and application troubleshooting for demanding industrial environments.
Reviewed by: Mohamed Heikal, Automation Specialist
Last reviewed: June 2026
Incorrect parameter setup and poor grounding are the two most common root causes of VFD problems in industrial environments. Most drive hardware failures trace back to external factors, installation conditions, motor compatibility issues or electrical environment, rather than defective drive components.
Not always, but in many applications, yes. Motors on VFDs should be rated for inverter duty, particularly in applications with long cable runs, sustained low-speed operation or motors above 30 kW. Standard motors can operate on VFDs within certain parameters, but they carry higher risk of insulation and bearing failure over time.
As a general rule, cable runs over 50 metres warrant an output reactor or dV/dt filter and runs over 100 metres require a sine wave filter or inverter-duty motor. Always verify against the specific drive manufacturer's published cable length guidelines, as thresholds vary by drive model and carrier frequency setting.
Bearing failure in VFD applications is most often caused by shaft currents, common-mode voltages generated by PWM switching that discharge through motor bearings. This is most common on motors above 30 kW on longer cable runs. Insulated bearings on the non-drive end, shaft grounding rings or both are the standard mitigations.
Parameter review should happen any time the load, process conditions or motor changes, not just at initial commissioning. Annual review of protection settings, thermal thresholds and operating limits is good practice for critical applications. Any unexplained trip or performance change is also a prompt to review current parameter settings against application requirements.
Canadian electrical systems follow IEEE 519 guidelines for harmonic distortion limits, with 5% THD typically the threshold at the point of common coupling. Facilities with multiple drives on shared bus infrastructure may require passive or active harmonic filters; harmonic impact should be assessed at the design stage, not after the system is energized.
Yes, with important limitations. A single VFD driving multiple motors in parallel works in specific applications, typically fans or pumps with similar load characteristics, but eliminates individual motor-level protection and makes fault diagnosis more difficult. Each motor still requires individual overload protection and multi-motor VFD applications should be reviewed with your drive supplier before installation.
Set minimum speed limits to prevent operation below the pump's safe minimum (typically 20–30 Hz), configure deceleration ramps conservatively to avoid water hammer and verify the motor is rated for inverter duty. Matching the drive and motor to the pump's specific head-flow curve at the specification stage prevents most pump VFD problems before they start.
