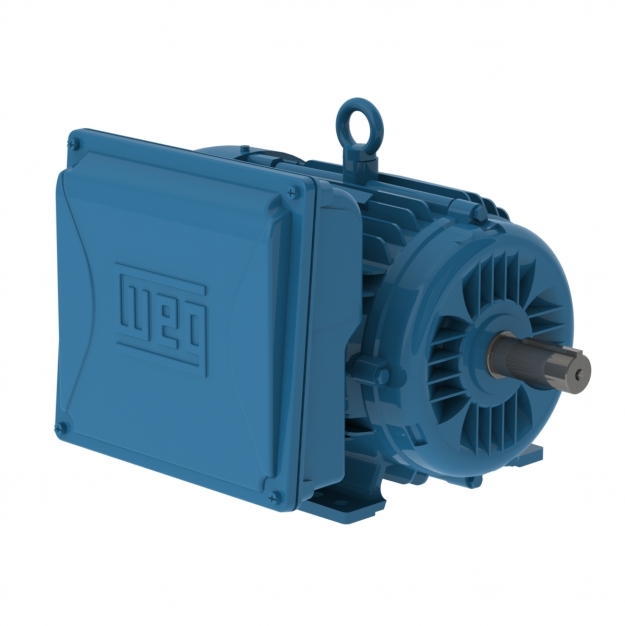

ELECTRIC MOTOR SINGLE PHASE 5 HP 02 182/4T 208-230 60Hz B3R(D) IP55 W22 WFF2

Name: 5 HP 3600 230V TEFC 182/4T 1PH IP55 W22
Brand: WEG
SKU: TS005102W22
Price: 3162.00 CAD
Availability: InStock

Part Number: TS005102W22

List Price: $3,162.00

Quantity:

Request Different Configuration

Inventory: In stock

HP	5 HP
Enclosure	IC411 - TEFC

Flange	Without
Output	5 HP (3.7 kW)
Terminal Box	Left position
Application	W22
Polarity	02
Ambient Temperature	-20°C to +40°C
Duty Cycle	Cont.(S1)
Service Factor	1.15 (1.00 @ 208V)
Moment of Inertia (J)	0.2164 sq.ft.lb
Breakdown Torque	250 %
No Load Current	3.36-3.90/1.95 A
L. R. Amperes	146-135/67.5 A
Slip	2.36 %
Mounting	B3R
Frequency	60 Hz
Frame Material	Cast Iron
Main Terminal Box Hole	NPT 1
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Grounding Lugs	Single
Tropicalized Painting	Without
Bearing Cap	No-Without Bearing Cap
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6207 ZZ
