Founded in 1961 in the state of Santa Catarina in Brazil, WEG is acknowledged today as one of the largest manufacturers of electric motors in the entire world.
V.J. Pamensky Canada Inc. is one of the biggest names in the manufacturing industry due to its status as a massive importer of electric motors in Canada.
*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

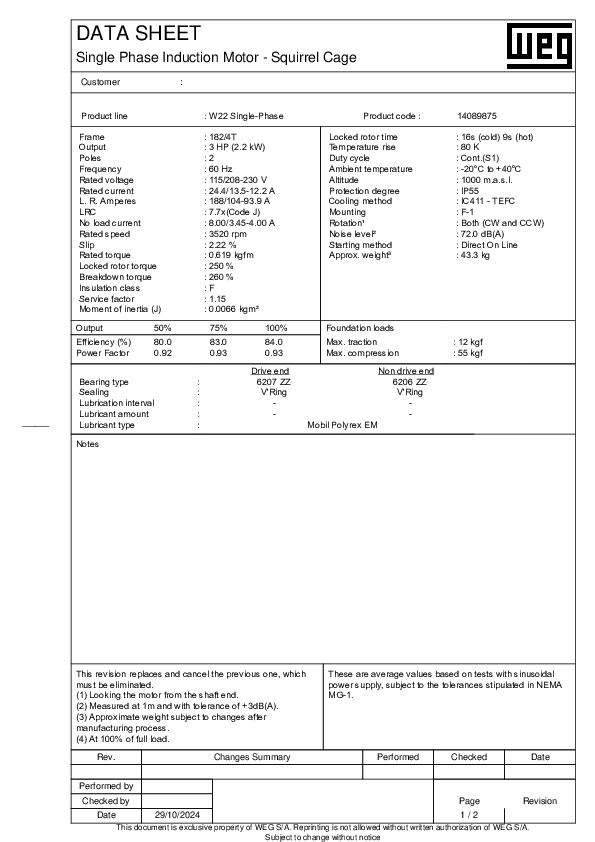

RATED VOLTAGE: 115/208-230 V
Enclosure: IC411 - TEFC
Output Rating: 3 HP
Number of Poles: 2
TERMINAL BOX: Left position
FLANGE: Without
Output: 3 HP (2.2 kW)
FRAME: 182/4T
ALTITUDE: 1000 m.a.s.l.
AMBIENT TEMPERATURE: -20°C to +40°C
STARTING METHOD: Direct On Line
DUTY CYCLE: Cont.(S1)
TEMPERATURE RISE: 80 K
SERVICE FACTOR: 1.15 (1.00 @ 208V)
INSULATION CLASS: F
MOMENT OF INERTIA (J): 0.1571 sq.ft.lb
LOCKED ROTOR TIME: 16s (cold) 9s (hot)
BREAKDOWN TORQUE: 260 %
RATED TORQUE: 4.48 ft.lb
NO LOAD CURRENT: 8.00/3.45-4.00 A
LRC: 7.7x(Code J)
L. R. AMPERES: 188/104-93.9 A
RATED CURRENT: 24.4/13.5-12.2 A
SLIP: 2.22 %
RATED SPEED: 3520 rpm
MOUNTING: F-1
DEGREE OF PROTECTION: IP55
FREQUENCY: 60 Hz
SYNCHRONOUS SPEED: 3600 rpm
STANDARD: NEMA MG-1
FRAME MATERIAL: Cast Iron
IMPREGNATION METHOD: Dip and Bake Polyester
MAIN TERMINAL BOX HOLE: NPT 1"
TERMINAL BLOCK: Without
SHAFT LOCKING DEVICE: Without
DRAIN: Rubber, automatic
SHAFT MATERIAL: SAE 1040/45 Carbon Steel
PAINTING: RAL 5009 207A (ISO 12944 - C3)
GROUNDING LUGS: Single
FAN COVER MATERIAL: Steel
TROPICALIZED PAINTING: Without
FAN MATERIAL: Plastic
BEARING CAP: No-Without Bearing Cap
DRIP COVER: Without
OVERLOAD PROTECTOR (PHENOLIC): Without overload protector
NDE BEARING: 6206 ZZ
GREASE TYPE: Mobil Polyrex EM
LOCKED ROTOR TORQUE: 250 %
ROTATION: Both (CW and CCW)
NOISE LEVEL: 72.0 dB(A)
BEARING TYPE: 6207 ZZ
SEALING: V'Ring
NDE BEARING SEAL: V'Ring
