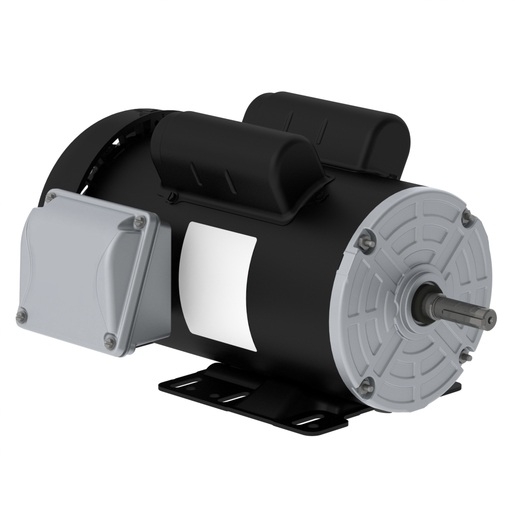

ELECTRIC MOTOR SINGLE PHASE 1.5 HP 02 56 115/208-230 WCF2 60Hz F-1/B3R(D) IP55 PREMIUM EFFICIENCY ROLLED STEEL SINGLE PHASE

Name: 1.5HP 3600 1X2 TEFC 56 1PH W01 DOE
Brand: WEG
SKU: TF001102W01DOE
Price: 906.00 CAD
Availability: InStock

Part Number: TF001102W01DOE

List Price: $906.00

Quantity:

Request Different Configuration

Inventory: In stock

Voltage	115/208-230V
RPM	3600 rpm

HP	1.5 HP
Enclosure	IC411 - TEFC

Flange	Without
Output	1.5 HP (1.1 kW)
Terminal Box	Left position
Application	ROLLED STEEL
Power	1.5 HP
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.0669 sq.ft.lb
Breakdown Torque	270 %
No Load Current	2.40/1.03-1.20 A
L. R. Amperes	103/55.3-51.3 A
Slip	2.78 %
Mounting	F-1/B3R(D)
Frequency	60 Hz
Frame Material	Rolled Steel
Main Terminal Box Hole	0.881"
Drain	Rubber, automatic
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Industrial polymer
Fan Material	Plastic
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6204 ZZ
NDE Bearing Seal	Without Bearing Seal
