Founded in 1961 in the state of Santa Catarina in Brazil, WEG is acknowledged today as one of the largest manufacturers of electric motors in the entire world.
V.J. Pamensky Canada Inc. is one of the biggest names in the manufacturing industry due to its status as a massive importer of electric motors in Canada.
*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

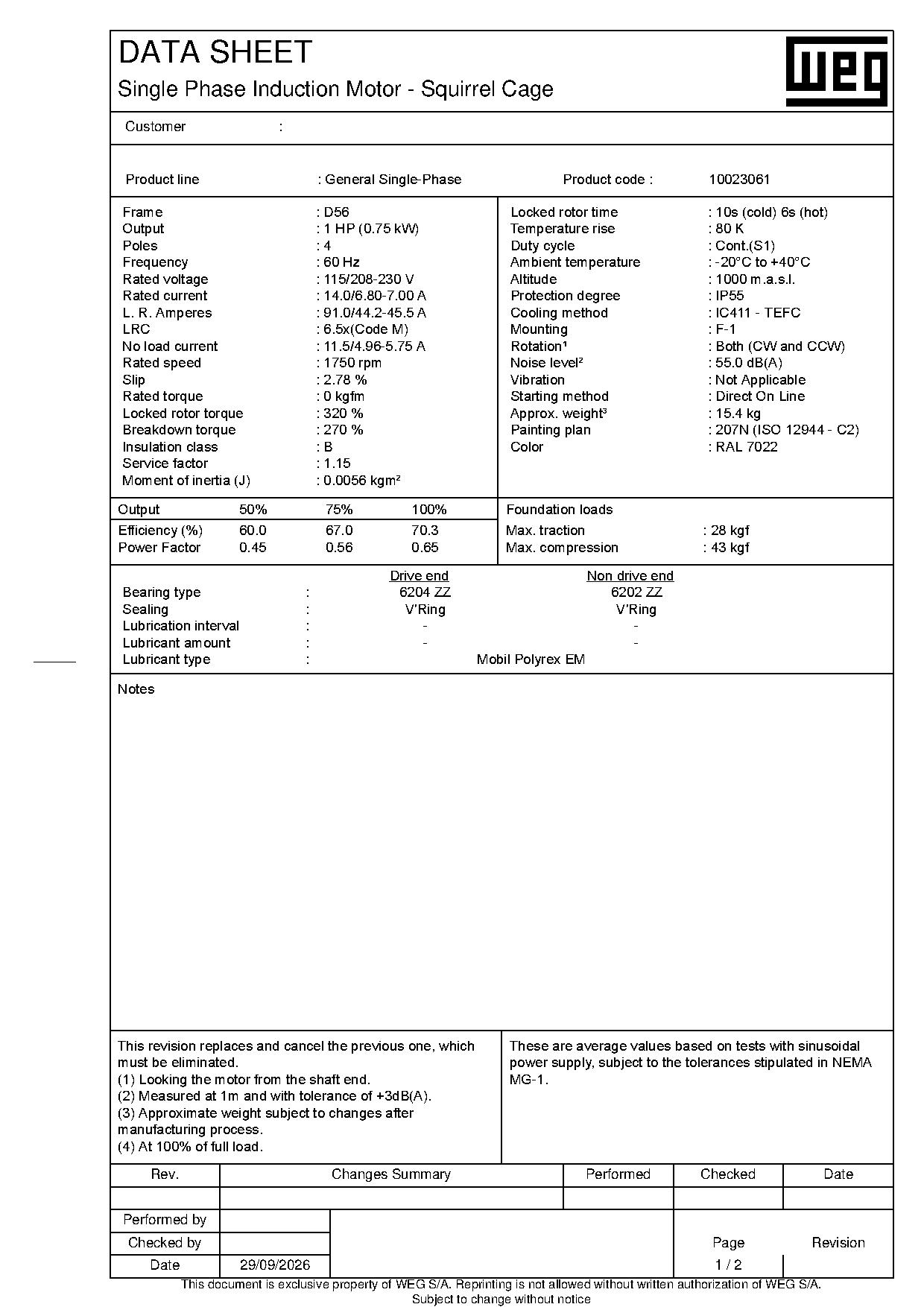

RATED VOLTAGE: 115/208-230 V
Enclosure: IC411 - TEFC
Output Rating: 1 HP
Number of Poles: 4
TERMINAL BOX: Left position
FLANGE: Without
Output: 1 HP (0.75 kW)
FRAME: D56
ALTITUDE: 1000 m.a.s.l.
AMBIENT TEMPERATURE: -20°C to +40°C
STARTING METHOD: Direct On Line
DUTY CYCLE: Cont.(S1)
TEMPERATURE RISE: 80 K
SERVICE FACTOR: 1.15 (1.00 @ 208V)
INSULATION CLASS: B
MOMENT OF INERTIA (J): 0.1338 sq.ft.lb
LOCKED ROTOR TIME: 10s (cold) 6s (hot)
BREAKDOWN TORQUE: 270 %
RATED TORQUE: 3.00 ft.lb
NO LOAD CURRENT: 11.5/4.96-5.75 A
LRC: 6.5x(Code M)
L. R. AMPERES: 91.0/44.2-45.5 A
RATED CURRENT: 14.0/6.80-7.00 A
SLIP: 2.78 %
RATED SPEED: 1750 rpm
MOUNTING: F-1
DEGREE OF PROTECTION: IP55
FREQUENCY: 60 Hz
SYNCHRONOUS SPEED: 1800 rpm
STANDARD: 00006
FRAME MATERIAL: Rolled Steel
IMPREGNATION METHOD: Dip and Bake Polyester
MAIN TERMINAL BOX HOLE: 2xNPT 1/2"
TERMINAL BLOCK: Without
DRAIN: Rubber, automatic
SHAFT MATERIAL: SAE 1040/45 Carbon Steel
PAINTING: RAL 7022 207N (ISO 12944 - C2)
GROUNDING LUGS: Single
FAN COVER MATERIAL: Steel
TROPICALIZED PAINTING: Without
FAN MATERIAL: Plastic
BEARING CAP: No-Without Bearing Cap
BALANCING METHOD: 1/2 Key
DRIP COVER: Without
OVERLOAD PROTECTOR (PHENOLIC): Without overload protector
NDE BEARING: 6202 ZZ
GREASE TYPE: Mobil Polyrex EM
LOCKED ROTOR TORQUE: 320 %
ROTATION: Both (CW and CCW)
NOISE LEVEL: 55.0 dB(A)
BEARING TYPE: 6204 ZZ
SEALING: V'Ring
NDE BEARING SEAL: V'Ring
