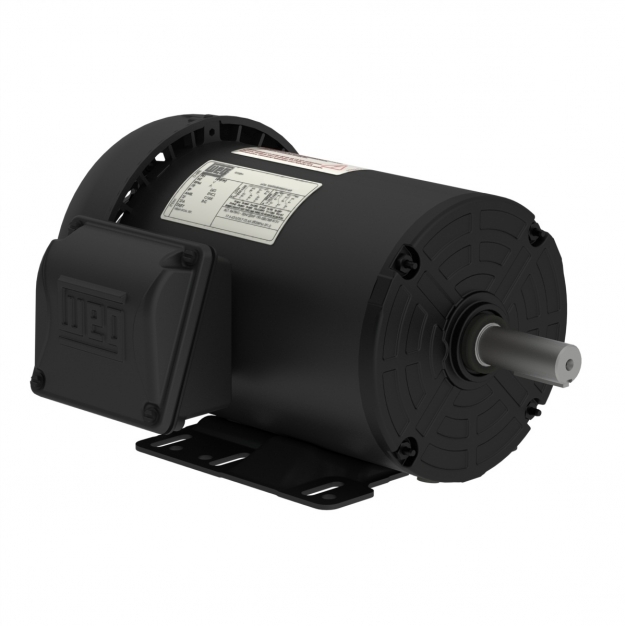

ELECTRIC MOTOR THREE PHASE 0.5 HP 02 W56 575 C/W 3 leads WCF2 60Hz F-1/B3R(D) IP55 10014459673 PREMIUM EFFICIENCY ROLLED STEEL TRIF

Name: .50HP 3600 575 TEFC W56 3PH W01 DOE
Brand: WEG
SKU: TF.50502W01DOE
Price: 582.00 CAD
Availability: InStock

Part Number: TF.50502W01DOE

List Price: $582.00

Quantity:

Request Different Configuration

In stock

HP	0.5 HP
Enclosure	IC411 - TEFC

Flange	Without
Output	0.5 HP (0.37 kW)
Terminal Box	Left position
Application	ROLLED STEEL
Polarity	02
Ambient Temperature	-20°C to +40°C
Duty Cycle	Cont.(S1)
Service Factor	1.15
Moment of Inertia (J)	0.0190 sq.ft.lb
Breakdown Torque	360 %
No Load Current	0.334 A
L. R. Amperes	4.83 A
Slip	4.58 %
Mounting	F-1/B3R(D)
Frequency	60 Hz
Frame Material	Rolled Steel
Main Terminal Box Hole	0.881
Drain	Rubber, automatic
Painting	Only primer
Fan Cover Material	Industrial polymer
Fan Material	Plastic
Balancing Method	Not Balanced
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6203 ZZ
