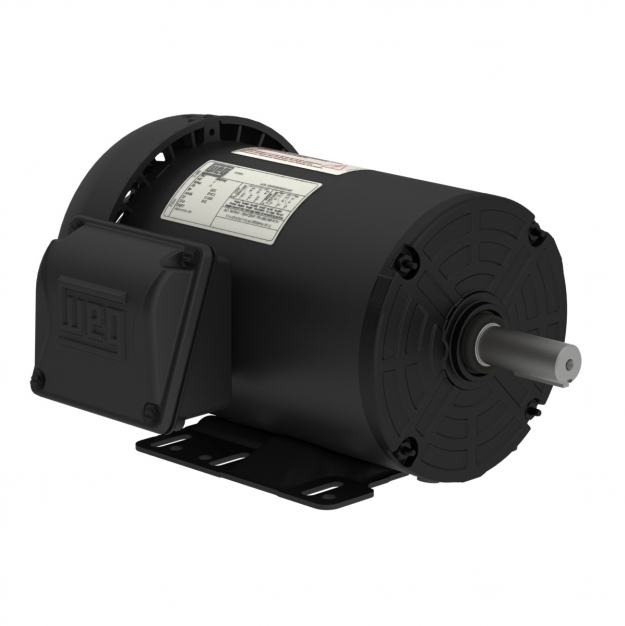

Rolled Steel Premium Efficiency 0.33 HP 2P W56 3Ph 208-230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted

Name: .33HP 3600 2X4 TEFC W56 3PH W01 DOE
Brand: WEG
SKU: TF.33402W01DOE
Price: 285.00 CAD
Availability: InStock

Part Number: TF.33402W01DOE

List Price: $285.00

Quantity:

Request Different Configuration

Inventory: In stock

HP	0.33 HP
RPM	3600 rpm

Voltage	208-230/460//190-220/380-415 V
Enclosure	IC411 - TEFC

Flange	Without
Output	0.33 HP (0.25 kW)
Terminal Box	Left position
Ambient Temperature	-20°C to +40°C
Duty Cycle	Cont.(S1)
Service Factor	1.15 (1.00 @ 208V)
Moment of Inertia (J)	0.0147 sq.ft.lb
Breakdown Torque	370 %
No Load Current	0.610-0.708/0.354 A
L. R. Amperes	9.27-8.14/4.07 A
Slip	4.17 %
Mounting	F-1
Frequency	60 Hz
Frame Material	Rolled Steel
Main Terminal Box Hole	0.881"
Drain	Rubber, automatic
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Industrial polymer
Fan Material	Plastic
Balancing Method	Not Balanced
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6203 ZZ
NDE Bearing Seal	Without Bearing Seal
