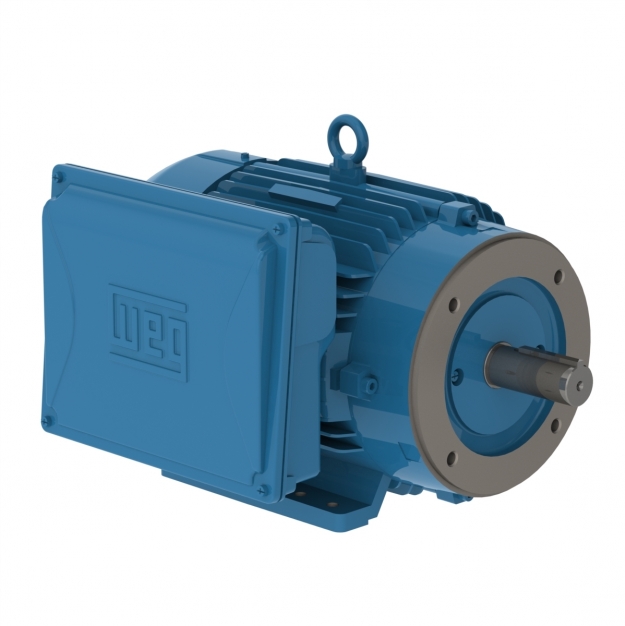

W22 2 HP 6P 213/5TC 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Foot-mounted

Name: 2 HP 1200 1X2 TEFC 213/5TC 1PHASE
Brand: WEG
SKU: TC002106W22
Price: 1.00 CAD
Availability: InStock

Part Number: TC002106W22

List Price: Please contact us for pricing

Quantity:

Request Different Configuration

Inventory: Call for stock

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

Voltage	115/208-230 V
RPM	1200 rpm

HP	2 HP
Enclosure	IC411 - TEFC

Flange	C
Output	2 HP (1.5 kW)
Terminal Box	Left position
Ambient Temperature	-20°C to +40°C
Duty Cycle	Cont.(S1)
Service Factor	1.15 (1.00 @ 208V)
Moment of Inertia (J)	1.05 sq.ft.lb
Breakdown Torque	229 %
No Load Current	9.20/3.97-4.60 A
L. R. Amperes	151/76.1-75.4 A
Slip	2.08 %
Mounting	F-1
Frequency	60 Hz
Frame Material	Cast Iron
Main Terminal Box Hole	NPT 1"
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Grounding Lugs	Single
Tropicalized Painting	Without
Bearing Cap	No-Without Bearing Cap
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6308 ZZ
NDE Bearing Seal	V'Ring
