Saw Arbor Motor Standard Efficiency 10 HP 4P 90L/MS 3Ph 575 V 60 Hz IC411 - TEFC - B3R(D)

Name: 10 HP 1800 575 SAW ARBOR LT 90L S6
Brand: WEG
SKU: SL010504S6
Price: 7724.00 CAD
Availability: InStock

Part Number: SL010504S6

List Price: $7,724.00

Quantity:

Request Different Configuration

Inventory: Call for stock

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

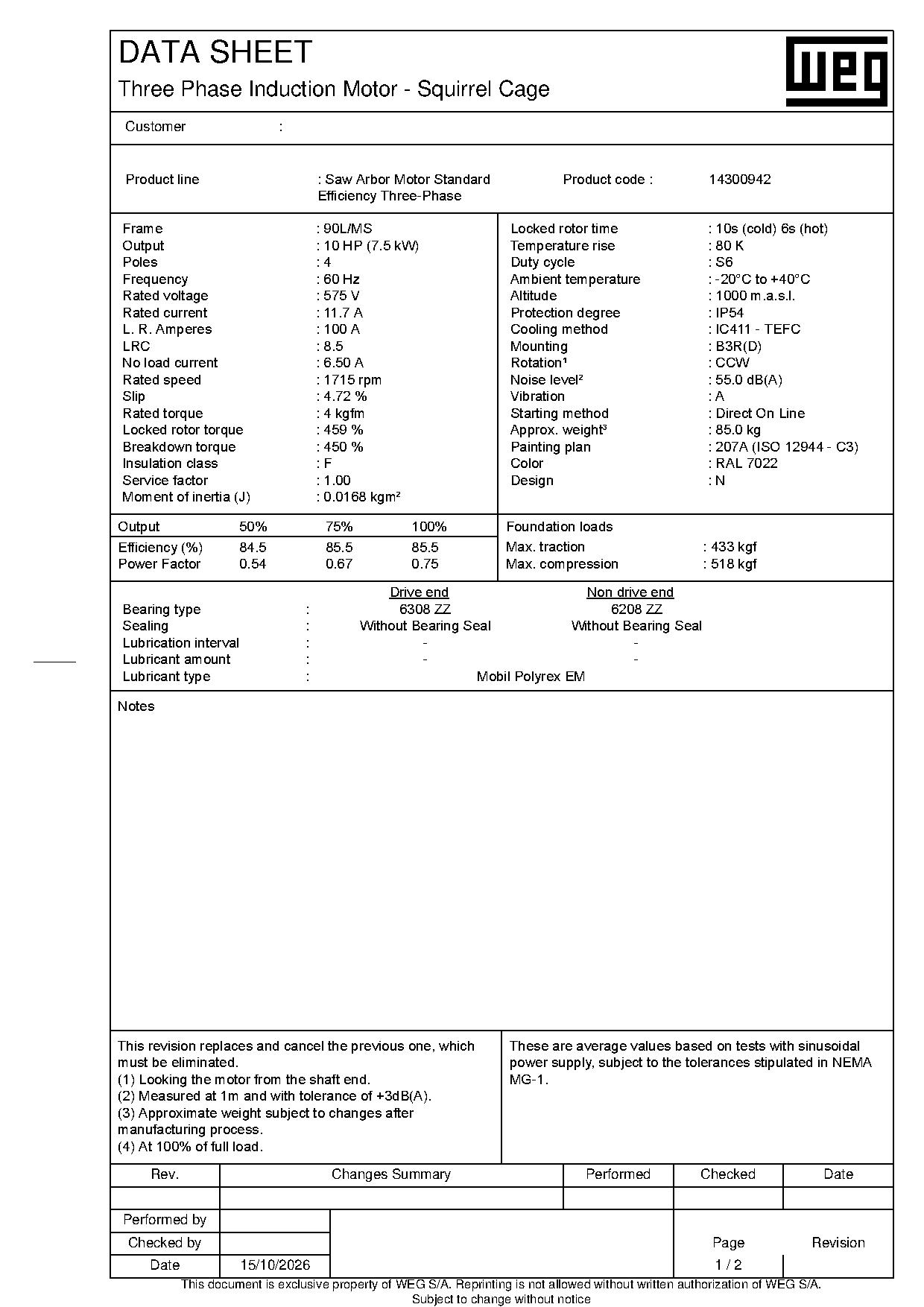

Voltage	575 V
RPM	1800 rpm

HP	10 HP
Enclosure	IC411 - TEFC

Frame	90L/MS
Voltage	575 V
Number of Poles	4
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.3989 sq.ft.lb
Breakdown Torque	450 %
No Load Current	6.50 A
Rated Current	11.7 A
Rated Speed	1715 rpm
Degree of Protection	IP54
Standard	00004
Impregnation Method	Dip and Bake Polyester
Terminal Block	Without
Painting	RAL 7022 207A (ISO 12944 - C3)
Fan Cover Material	Cast Iron
Fan Material	Aluminum
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	CCW
Bearing Type	6308 ZZ
NDE Bearing Seal	Without Bearing Seal
