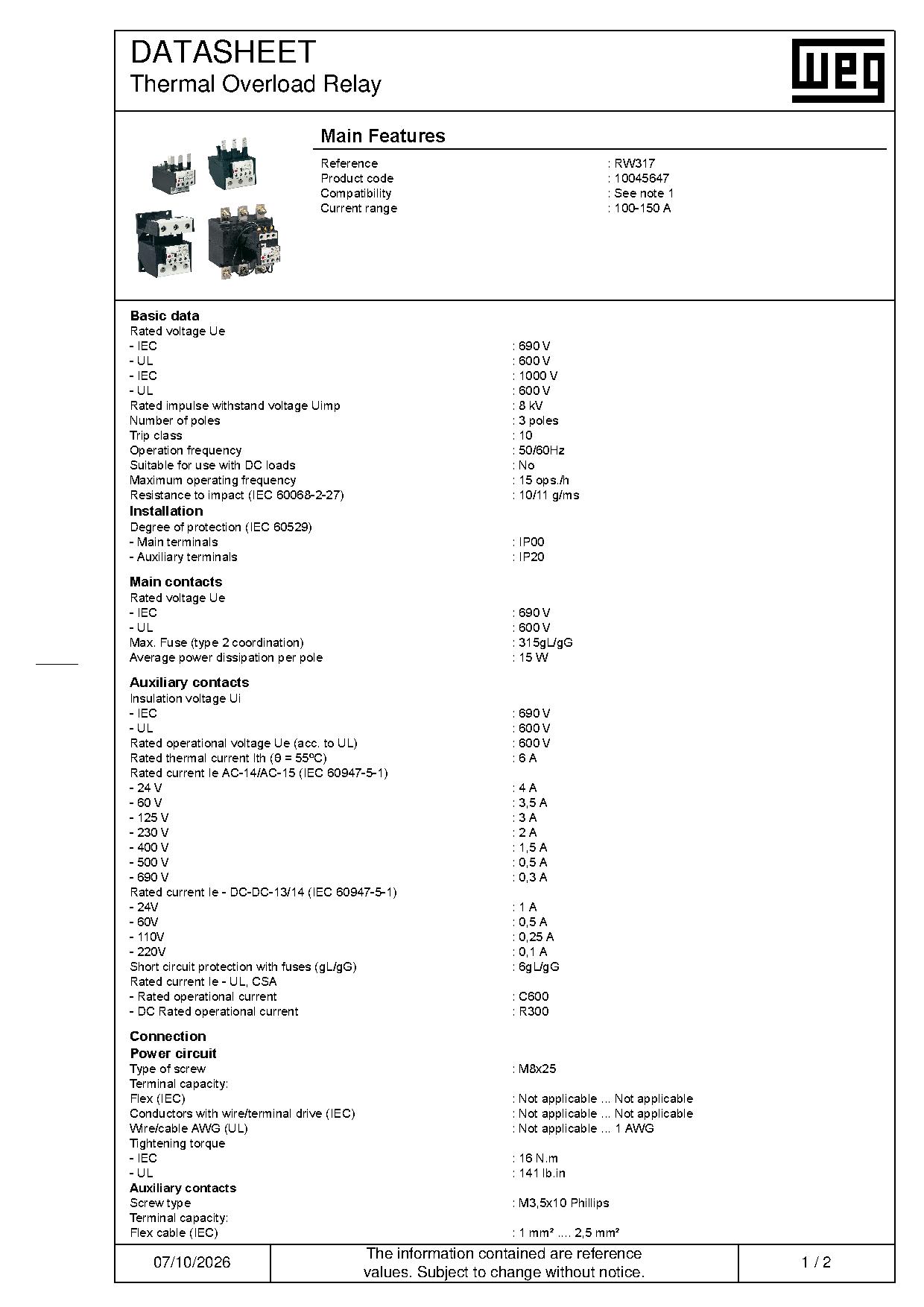

Reference
RW317
Mounting type
Individual
Current range
100-150 A
Number of poles
3 poles
Contactor model
CWM112-450
Mounting configuration
1D
Rated insulation voltage Ui (acc. to UL)
600 V
Rated operational frequency
50/60Hz
Maximum operating frequency
15 ops./h
Degree of protection - auxiliary terminals
IP20
Short circuit protection with fuses (gL/gG)
6gL/gG
Width
115 mm / 4.53 in
Gross weight
1,985 kg / 4.38 lb
Rated insulation voltage Ui
1000 V
Rated impulse withstand voltage Uimp
8 kV
Suitable for use with DC loads
No
Degree of protection - main terminals
IP00
Max. Fuse (type 2 coordination)
315gL/gG
Height
155 mm / 6.10 in
Depth
166 mm / 6.54 in
