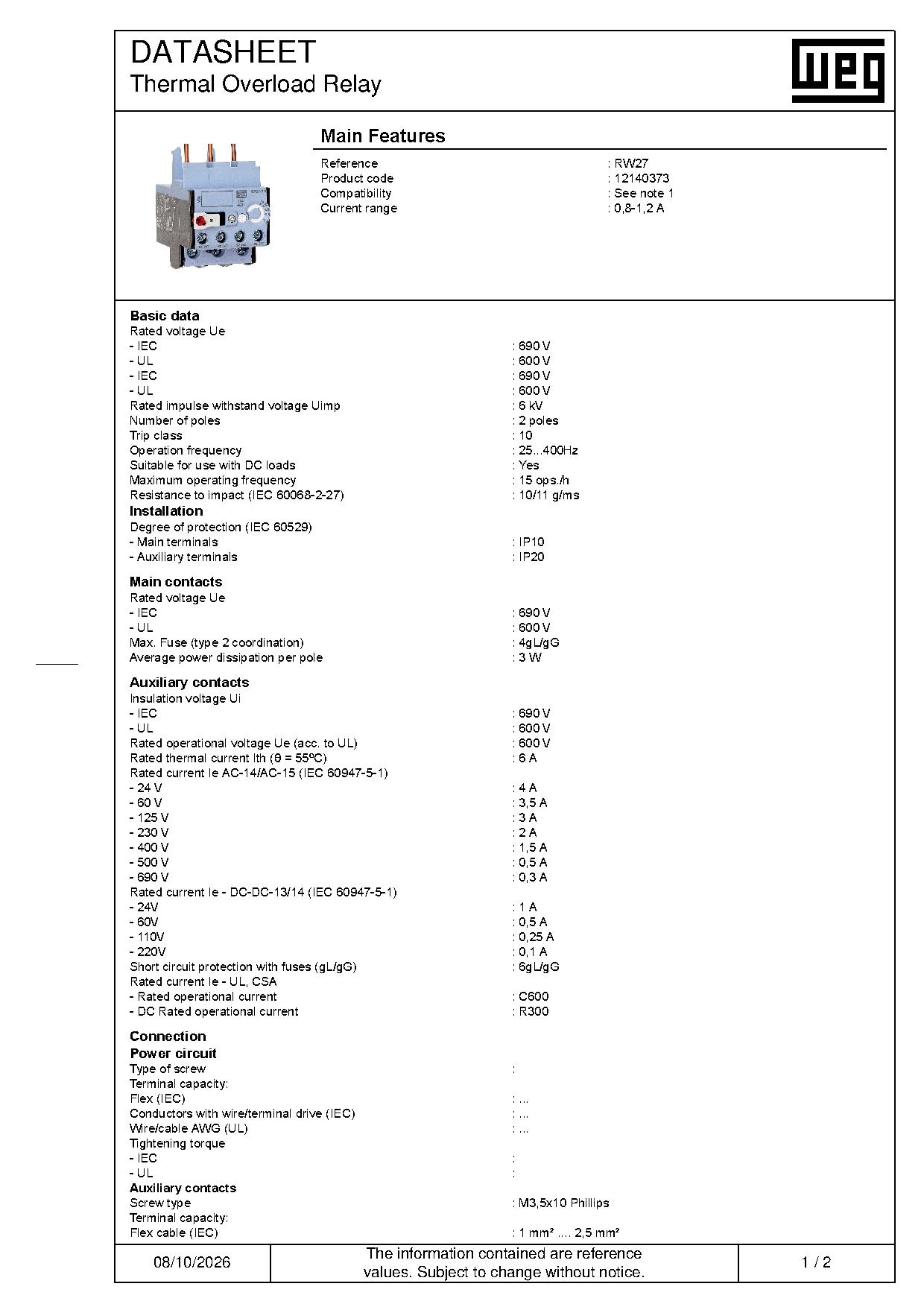

Reference
RW27
Mounting type
Direct
Current range
0,8-1,2 A
Number of poles
2 poles
Contactor model
CWB9-38
Mounting configuration
2D
Rated insulation voltage Ui (acc. to UL)
600 V
Rated operational frequency
25...400Hz
Maximum operating frequency
15 ops./h
Degree of protection - auxiliary terminals
IP20
Short circuit protection with fuses (gL/gG)
6gL/gG
Width
45 mm / 1.77 in
Gross weight
0,165 kg / 0.36 lb
Rated insulation voltage Ui
690 V
Rated impulse withstand voltage Uimp
6 kV
Suitable for use with DC loads
Yes
Degree of protection - main terminals
IP10
Max. Fuse (type 2 coordination)
4gL/gG
Height
72 mm / 2.83 in
Depth
82 mm / 3.23 in
