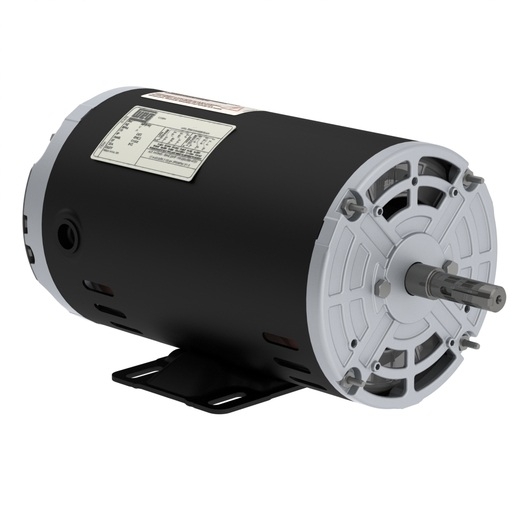

ELECTRIC MOTOR THREE PHASE 0.5 HP 04 56 575 C/W 3 leads WCA2 60Hz F-1/B3R(D) IP21 DIMENSIONS ACC. CONFIGURATION PREMIUM EFFICIENCY ROLLED STEEL T

Name: .50HP 1800 575 ODP W56 W01 DOE
Brand: WEG
SKU: OF.50504W01DOE
Price: 514.00 CAD
Availability: InStock

Part Number: OF.50504W01DOE

List Price: $514.00

Quantity:

Request Different Configuration

Inventory: In stock

HP	0.5 HP
RPM	1800 rpm

Voltage	575V
Enclosure	IC01 - ODP

Frame	56
Voltage	575 V
Number of Poles	4
Class	MOTOR ROLLED STEEL
Detail	IE2
Polarity	04
Ambient Temperature	-20°C to +40°C
Duty Cycle	Cont.(S1)
Service Factor	1.25
Moment of Inertia (J)	0.0584 sq.ft.lb
Breakdown Torque	330 %
No Load Current	0.520 A
L. R. Amperes	4.96 A
Slip	1.94 %
Mounting	F-1/B3R(D)
Standard	NEMA
Impregnation Method	Dip and Bake Polyester
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Without Fan Cover
Fan Material	Without fan
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6203 ZZ
NDE Bearing Seal	Without Bearing Seal
